SPECIFICATIONS

After-sale Service: Online technical support

Application: X-ray Room .Radiography Department ~

Brand Name: NoEnName_Null

CCD camera: CCD camera, Japanese Watt Brand, 360° rotation

Certification: CE

DIY Supplies: Electrical

Frequency: 40kHz

Function: Medical Diagnosis

HF generator: 110KV, 3.5kW ,40kHz

Hign-concerned Chemical: None

Image intensifie: Three fields of vision 9, 6, 4.5 French Thales Brand

Instrument classification: Class II

Material: Plastic, X-ray Protective Material

Model Number: mslcx35

Origin: Mainland China

Place of Origin: Guangdong, China

Power Source: Electricity

Product name: High Frequency C arm X ray machine

Quality Certification: CE

Safety standard: None

Shelf Life: 1years

Warranty: 1 Year

X- ray tube: Dual-focus fixing anode:0.6mm/1.5mm

Dear friend, hello, in order to reply to your message in time, you can contact me through WhatsApp if you have any questions. Please kindly add my WhatsApp, my number is (+8615387312654), and my email number is: (1191617219@qq.com)

 Dear Friends, welcome to our store, Thank You For Your Inquiry. We Will Respond To Your Questions Within 12 Hours. If You Need A Faster Reply, You Can Also Add It Directly . Wish You A Happy Life! Sales Manager: Miss Alice Zhong WhatsApp:  +86 18890035203 Wechat: zyy17608400048  Email: 1225048339@qq.com  Mobile number: +86 17608400048

Product Description

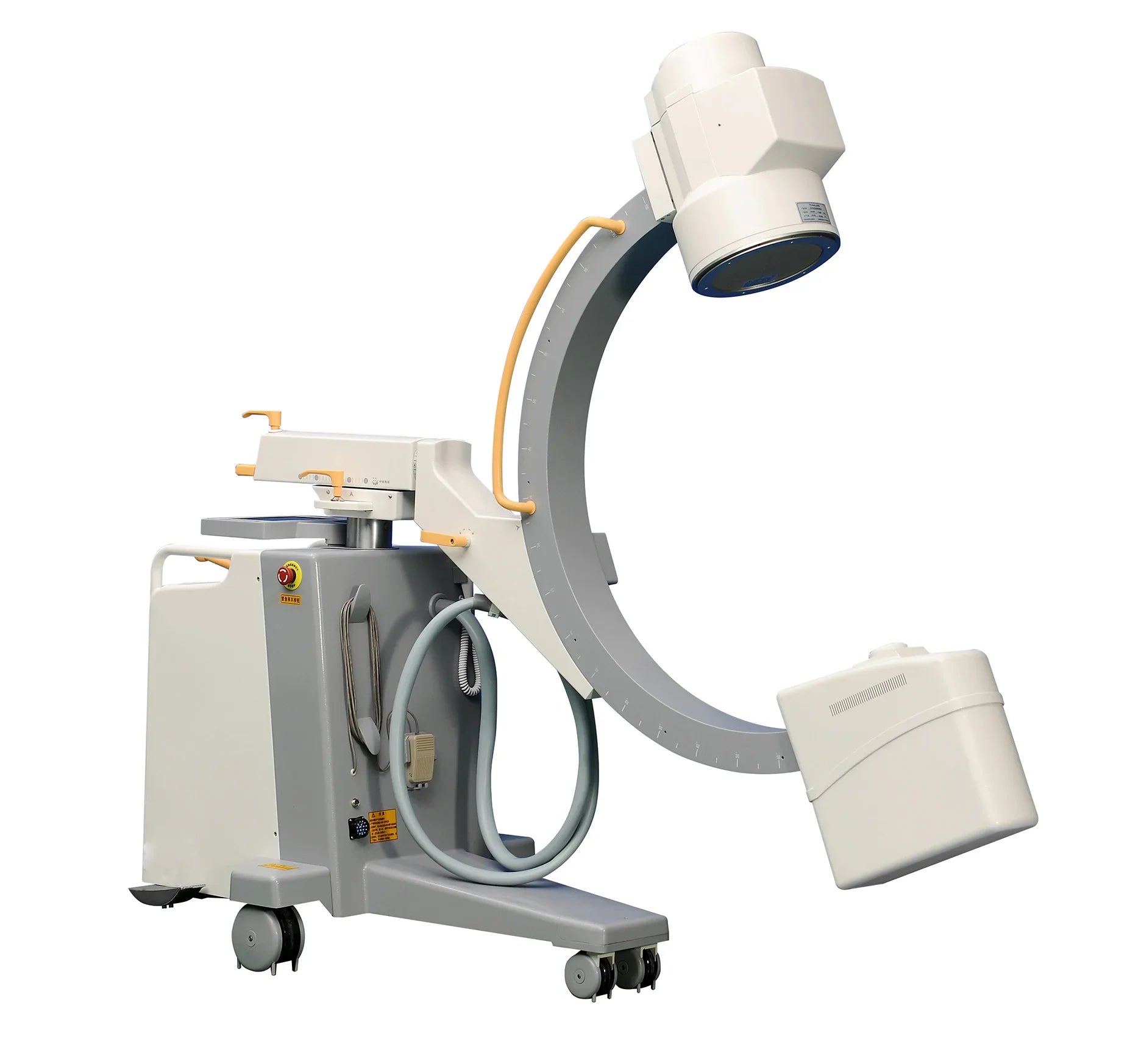

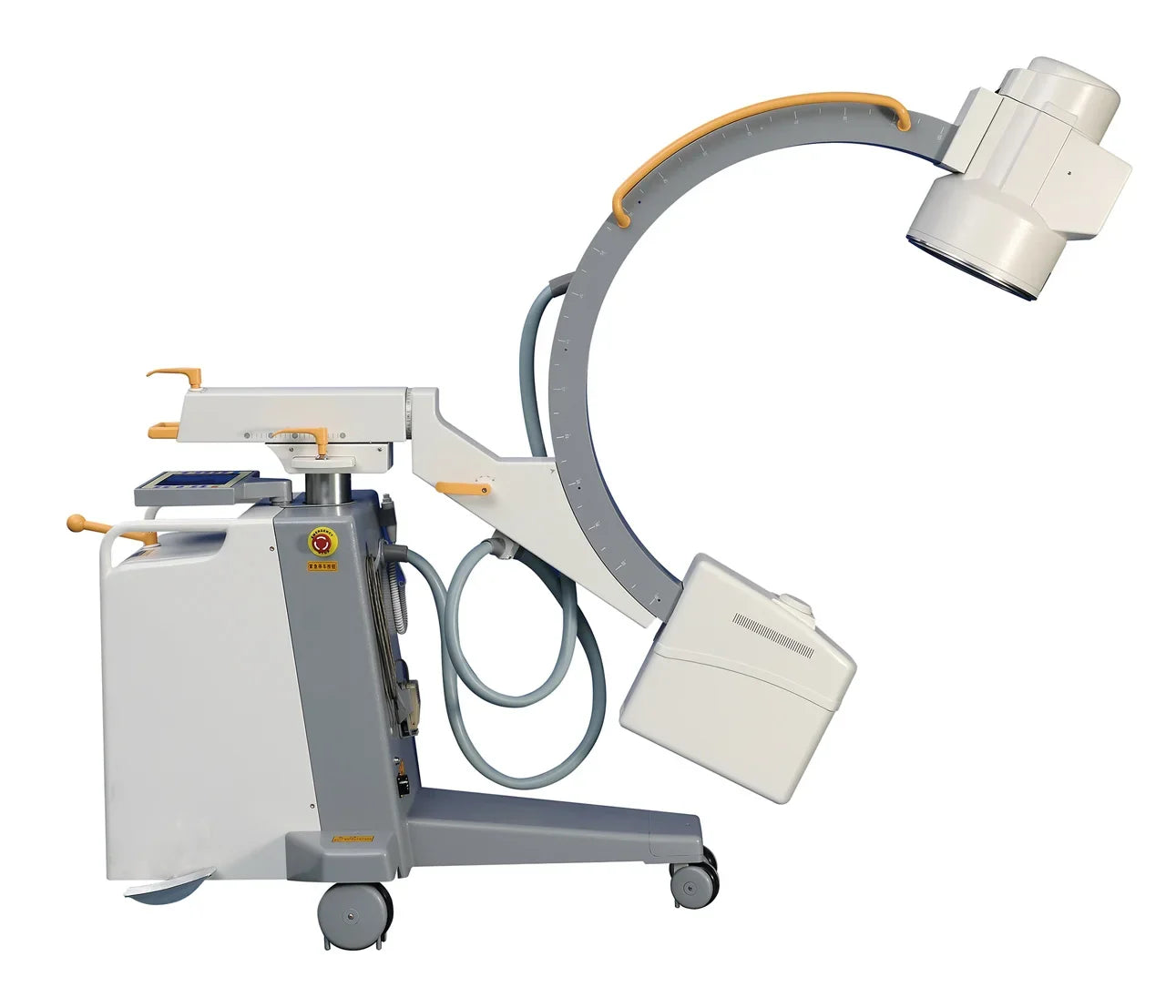

5.0kw x ray machine with c arm portable x ray unit hospital use

Mode:MSLCX35





Feature

1)With HF & HV generator, inverter, and High quality image intensifier, the X-ray generator can work stably.It also reduces the damage for the doctors caused by radiation.

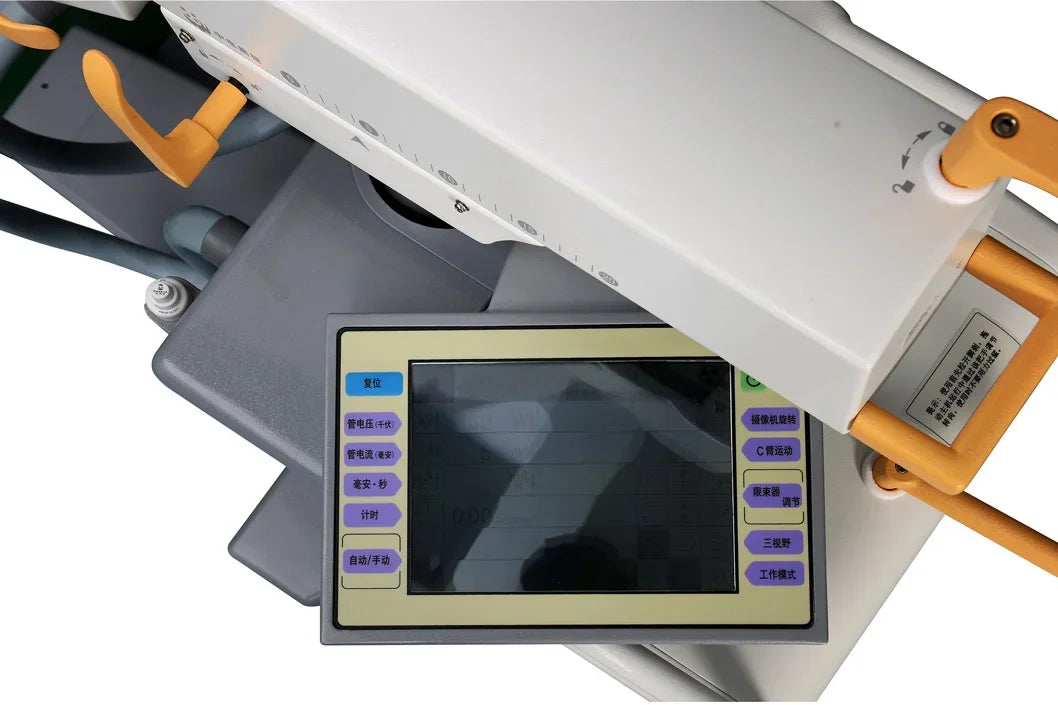

2)10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in English, which will improve the efficiency of fault diagnosis.
3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4)With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available.
5) Equipped with unique block line wheels, it can avoid accident when the machine moves.
6)Large free space in arc: the space can reach 800mm,which is convenient for operation.
7)9"/6"/4.5" three fields of vision:it facilitates diagnosis of partial enlargement.
8)CCD camera with rotation function:range of camera rotation:360°.
9)Original Korean linear slide rail can make the the movement of the machine flexibly.
10)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.





Details Images















Application

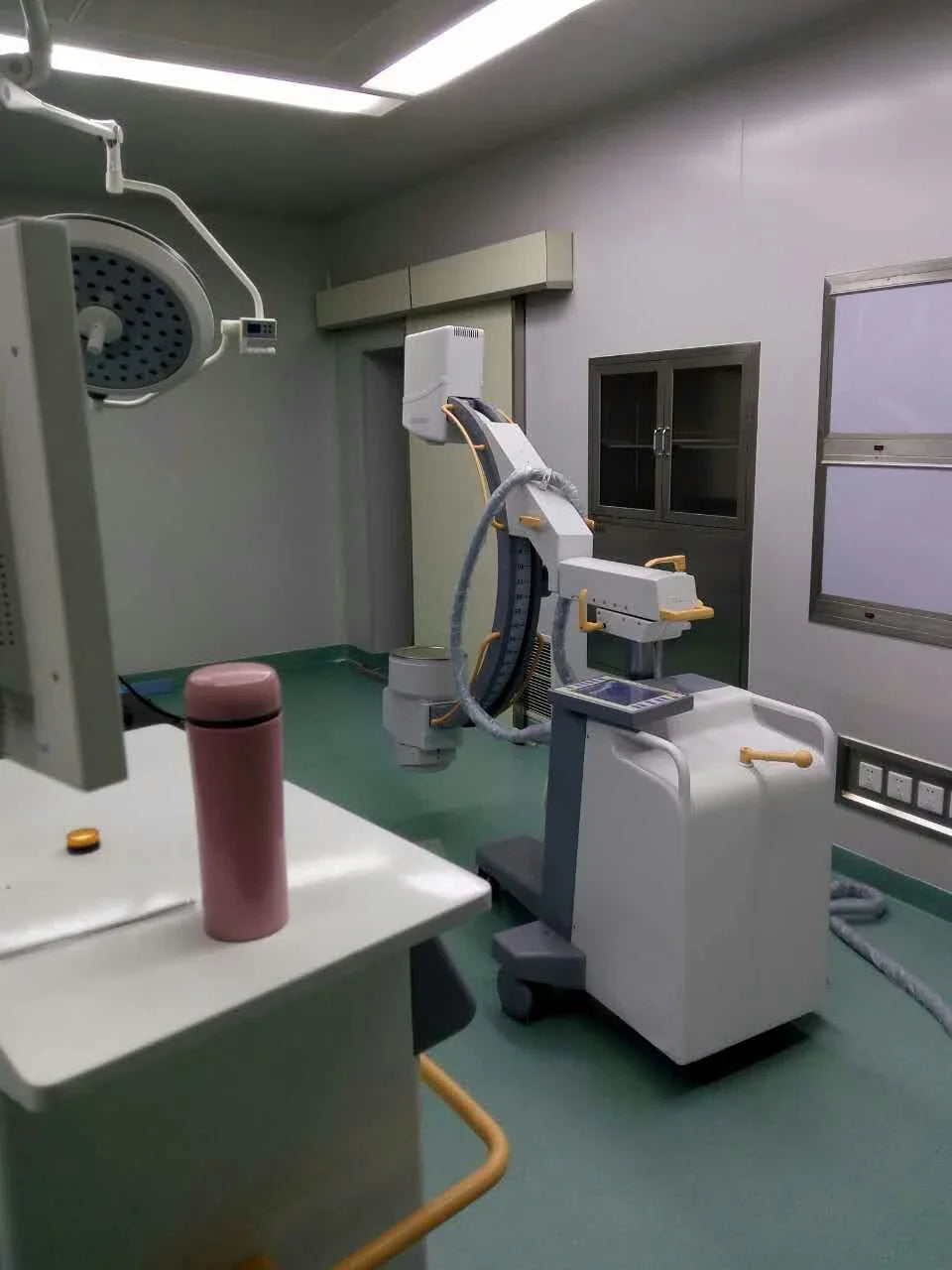

Widely use in operating room, X-ray department,emergency room ,intervention and peripheral
angiography.General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation,endoscopy and surgery. Intervertebral discangiography and angioplasty .

Specification

HF generator	110KV, 5.0kW ,40kHz
Fluoroscopy mode	Fluoroscopy mode40~110kv0.5~5mA (KV manual and automatic); Pulsd fluoroscopy 40~110kv 0,5-5mA Boost fluoroscopy 40~110kV 5~10mA; Photography 40~110kV 1~250mAs
X- ray tube	Dual-focus fixing anode:0.6mm/1.5mm
Image intensifier	Three fields of vision 9, 6, 4.5 French Thales Brand
CCD camera	CCD camera, Japanese Watt Brand, 360° rotation
Image system	Recursive Noise Reduction Frame freezing Multi frame image storage Image conversing and rotating Screen display with image comparison
Mechanical motion specifications	Verticaltravel:0-400mm Horizontaltravel:0~200mm Rotation about horizontal axis:±180°
C-arm dimension	Distance of focal spot to image generator(SID):1000mm Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm Image system: 750mm*530mm*1680mm
Standard configuration	High resolution CCD camera:1set x-ray generator:1set 9" image intensifier:1set image processing system: 1set LCD high definition display: 2 sets Mobile stand :1 set
