SPECIFICATIONS

After-sale Service: Online technical support

Application: Clinical Diagnostic

Brand Name: BIOBASE

Cuvettes: 8 reusable cuvettes,optical length 6mm

Instrument classification: Class II

Model Number: BK-200mini

Place of Origin: Shandong, China

Product name: Auto chemistry analyzer

Reagent Position: 28

Sample Position: 37

Test Speed: 200T/H

Type: Biochemical Analysis System,Biochemical Analysis System

Warranty: 2 years

Water Consumption: <5L/H

Wavelength: 8 Filtes

Weight: <50kg

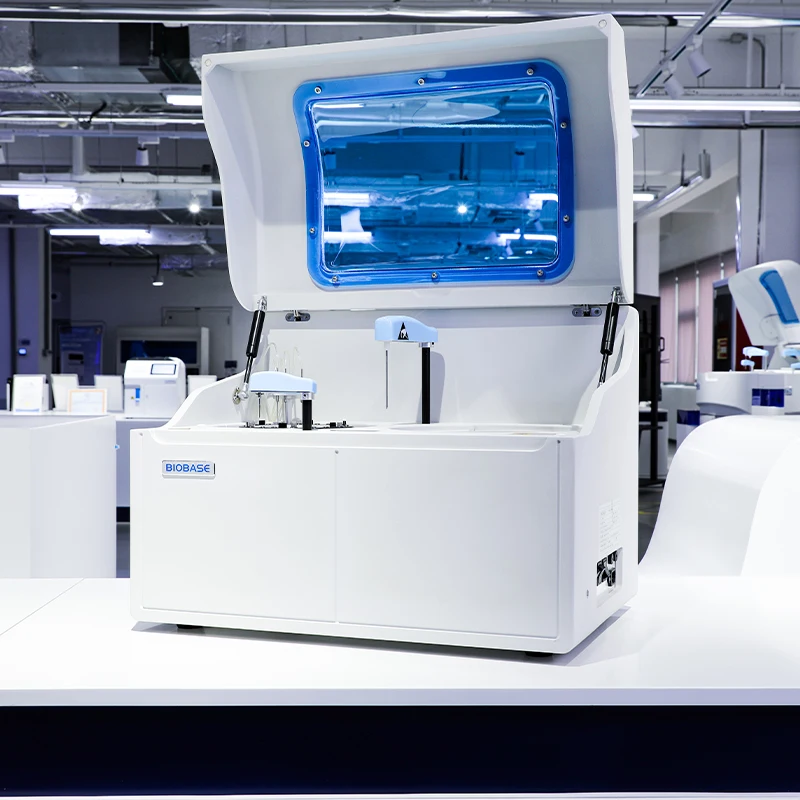

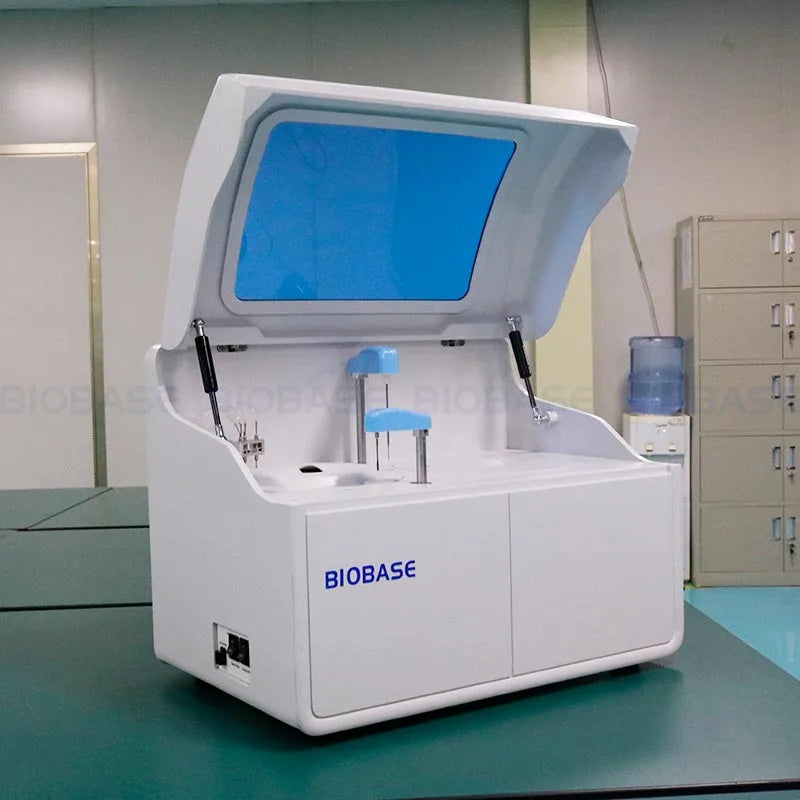

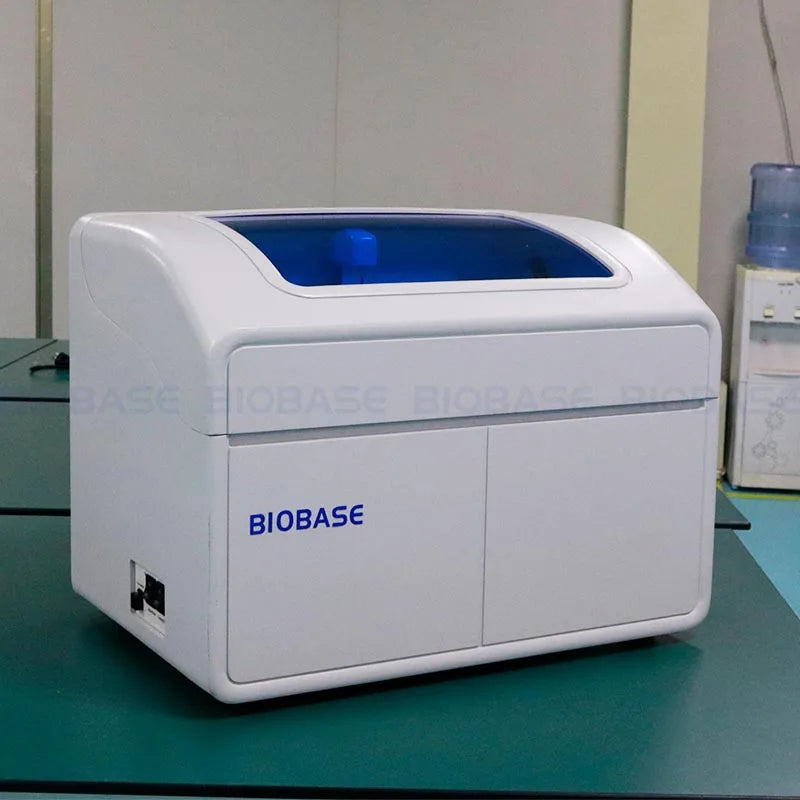

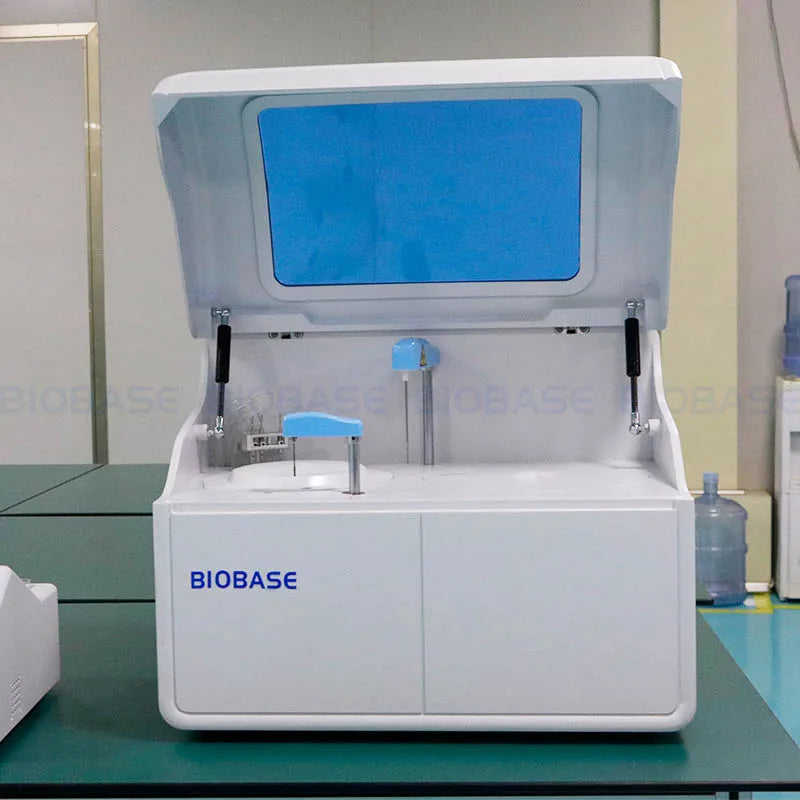

Product Introduction

This mini auto biochemical analyzer is recommended for you, it has obtained many international certifications and can be customized OEM.

English,Russian, Italian, Spanish, Ukrainian, French ect.

Feature:

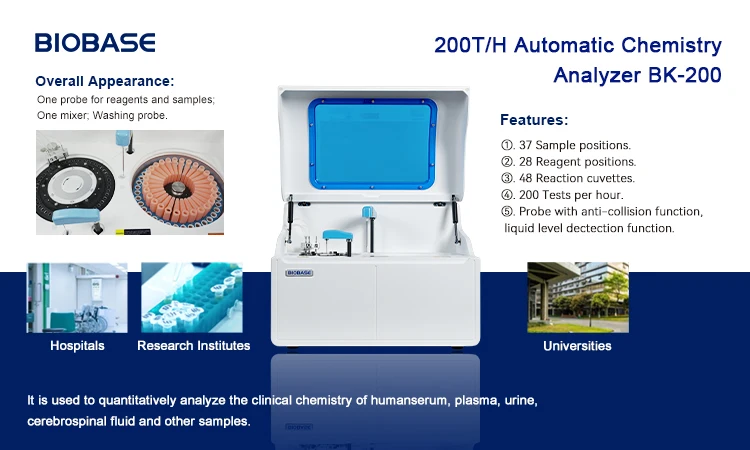

Auto Biochemistry Analyzer
. 37 Sample positions.

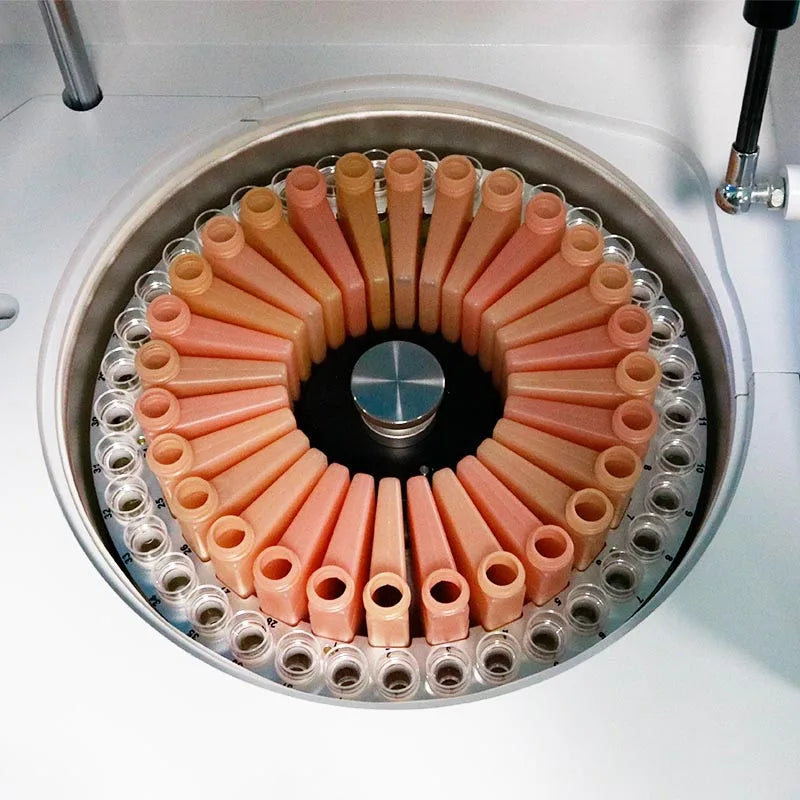

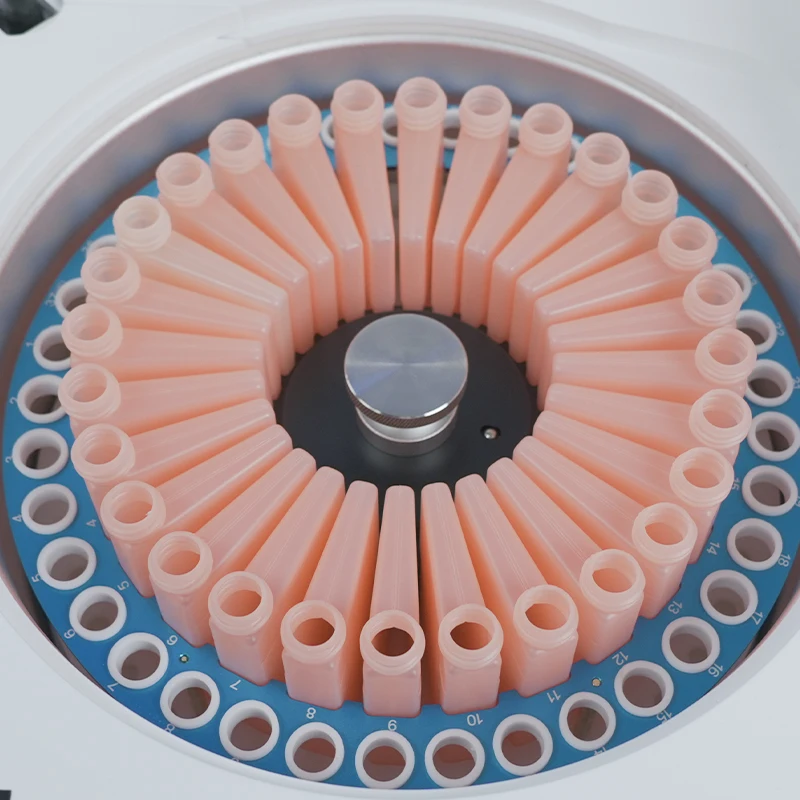

. 28 Reagent positions.
. 48 Reaction cuvettes.
. 200 Tests per hour.
. Probe anti-collision function,liquid level dectection function.

Technical Parameters

Model	BK-200mini( NEW BK-200)
Overall Performance	Throughput	200 Tests/hour
		Analysis Method	End-point, Fixed-time, Rate(Kinetic)
Sample & Reagent System	Sample Positions	37 sample positions
		Reagent Position	28 reagent positions
		Sample Volume	2~70ul
		Reagent Volume	20~350ul

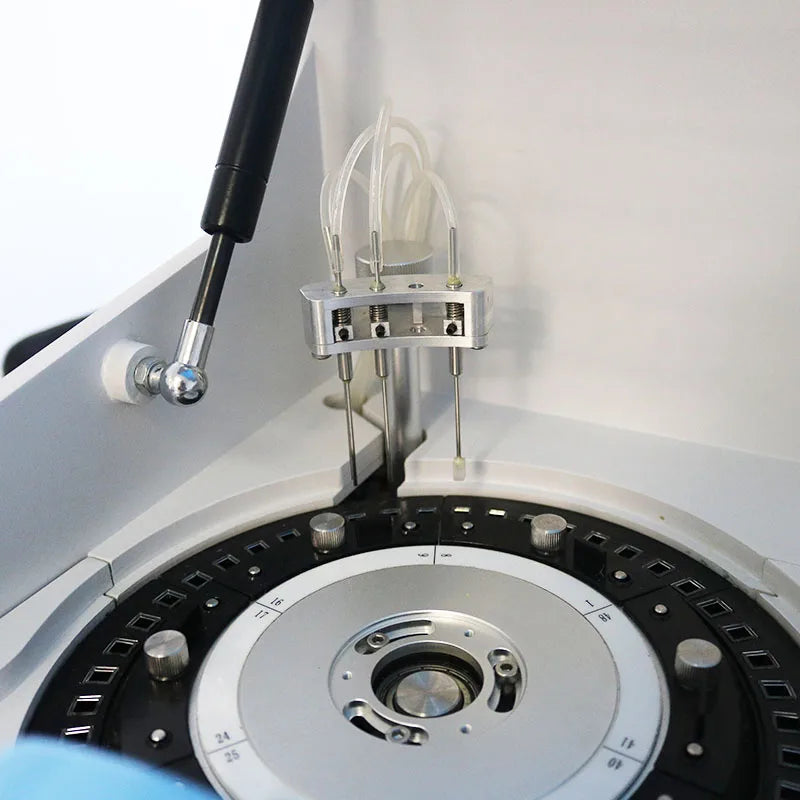

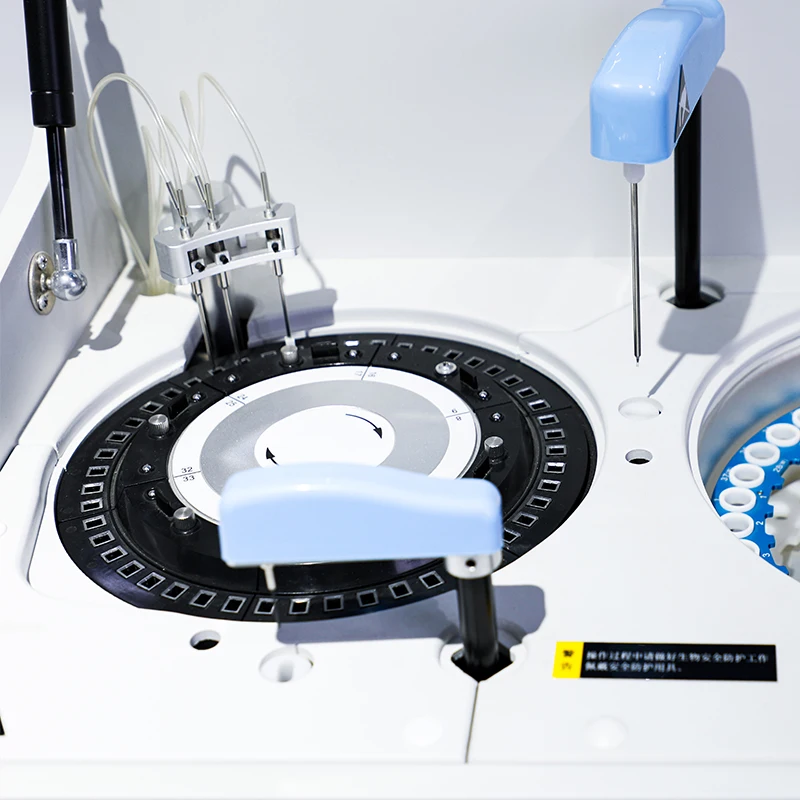

		Probe	Tefloncoating,withanti-collision function,Liquid level detectionfunction.
		Probe Washing	Automatic washing interior and exterior
		Reagent Cooling	Refrigerated tray with independent switch
Reaction System	Temperature Control	37+0.1℃, real-time monitoring

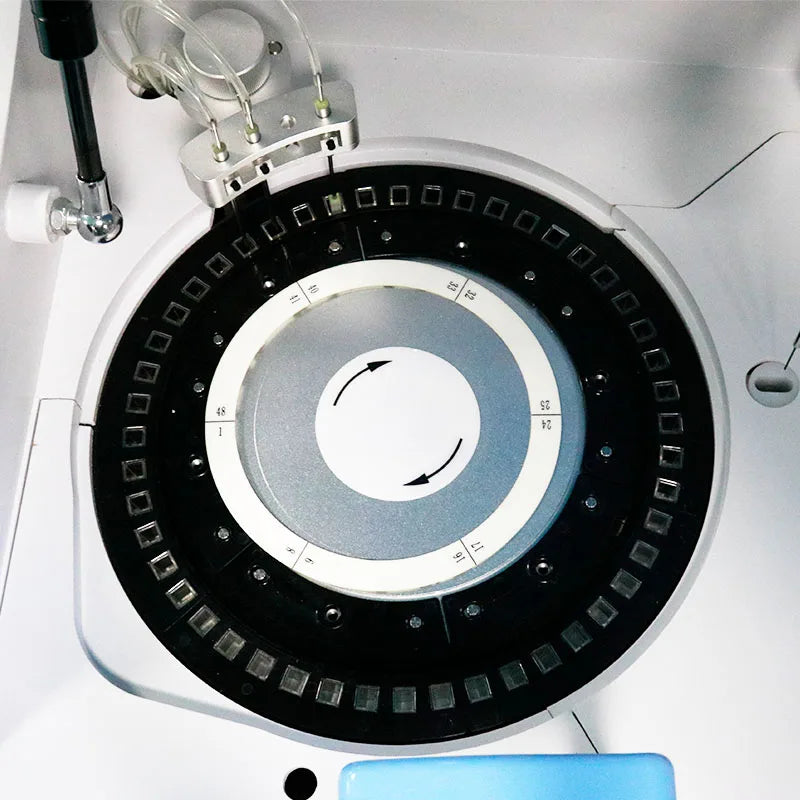

		Cuvettes	48 reusable cuvettes,optical length 6mm
		Mixer Probe	Independent stirring
		Washing	Automatic cuvettes washing
		STAT function	YES
Optical System	Light Source	6V/10W halogen lamp
		Spectrophotometry	Post-spectral spectrophotometry
		Wavelength	340,405,450,510,546,578,630,700nm
		Absorbance	0~3.0Abs
Calibration & QC	Calibration	Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
		Quality Control	Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management	Software	Windows 7/8/10 , 32or 64bit
		LIS System	Bi-direction,support HL7 protocol
		Interface	LAN port access
	Printer	External,multiple reporting mode available

Company Introduction

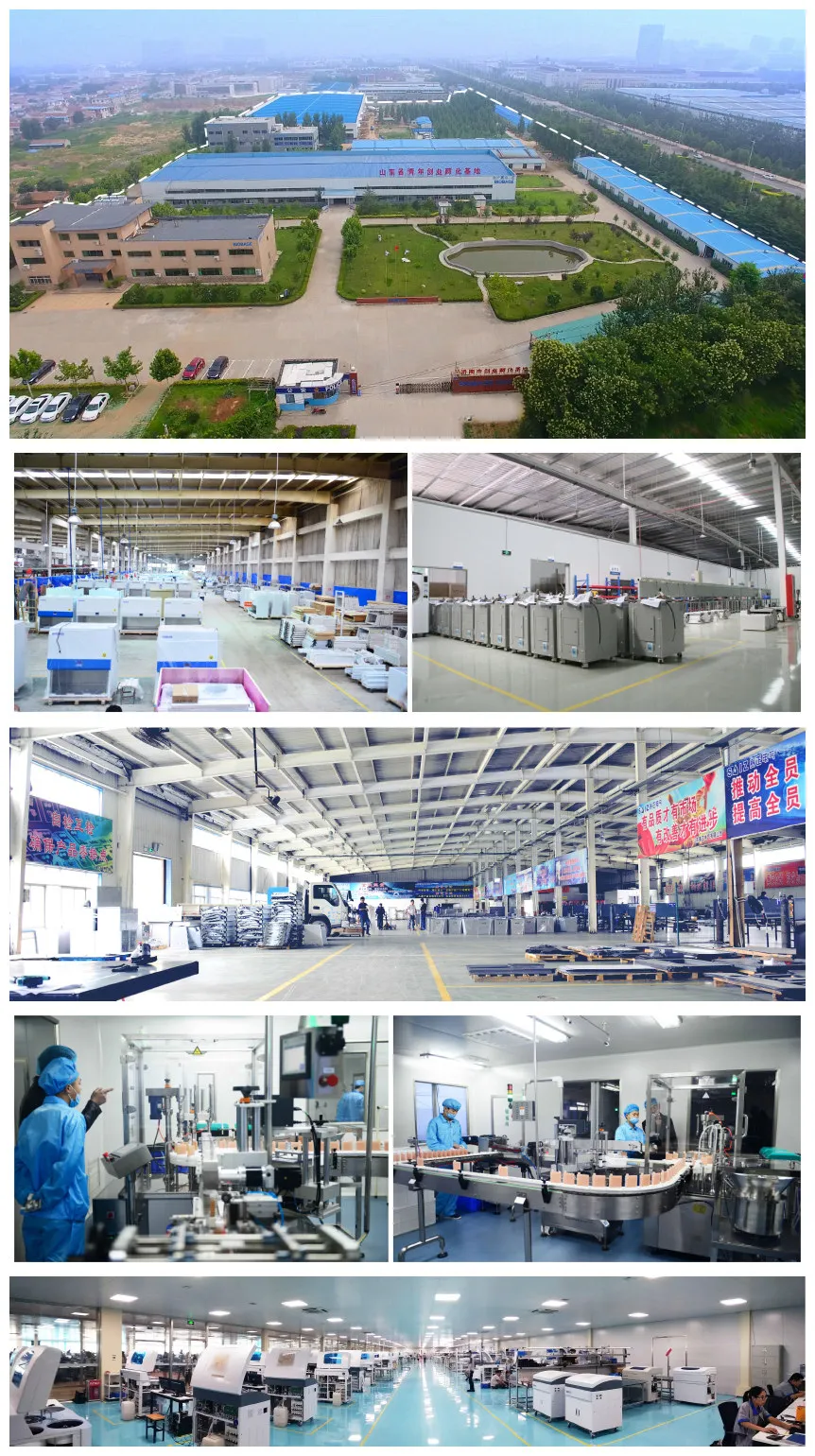

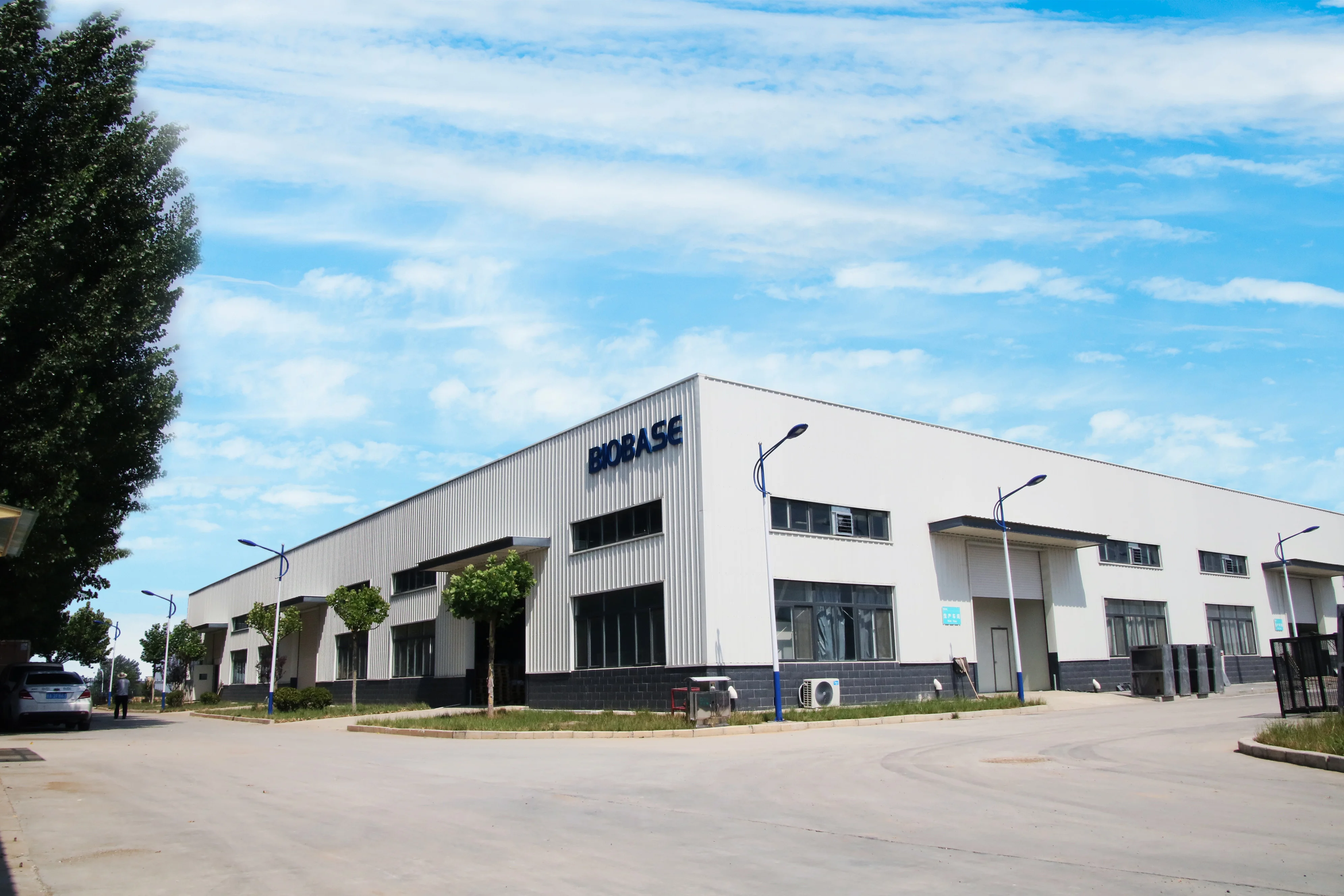

BIOBASE Group is a professional manufacturer of laboratory and analytical products since 1999.Our main products in IVD field mainly are Auto chemistry analyzer,Chemistry & Elisa reagents, Auto ELISA processor, Microplate reader&washer,Hematology analyzer.Electrolyte analyzer.Urine analyzer,Coagulation analyzer,.etc.In Lab field mainly are Biological safety cabinet,Fume hood.Laminar flow cabinet,PCR cabinet,etc.
