SPECIFICATIONS

After-sale Service: Free spare parts

Brand Name: NeswellMed

Certificate: ISO

Goss weight: 3.5KG

Instrument classification: Class II

Model Number: 6000B

Net weight: 1.6KG

Place of Origin: Guangdong, China

Power Source: Electric

Quality Certification: CCC

Shelf Life: 1years

Size: 8in lcd

Voltage: 110-220V

Warranty: 1 Year,12months for main host, 3months for accessories

package: 35cm*25cm*28cm

Features:	8" color TFT LCD screen, resolution 800*600 Waterproof design, resistance to dropping (1 meter) Low power consumption, fanless structure which creates no noise Support external 13-20V DC power, continuously working for 5.5 hours above on battery backup, full charge with 2.5 hours, suitable for Ambulance, Emergency Transport Display mode: Big font, trends review, 7 leads ECG waveform on same screen, and etc 15 kinds of arrhythmia analysis, 15 kinds of drug concentration analysis Anti-electrosurgical unit (300W), anti-defibrillation (360J), suitable for Operating Room, General Ward Digital SpO2 technology, excellent anti-interference performance, low perfusion (0.1%) Support languages:Chinese，English，Spanish，Portuguese，Russian，French，German，Czech，Denish，Dutch，Finland，Italian，Polish，Turkish，Taiwan Trad，Romania ，Ukrainian
Standard parameter with full accessories:	ECG Lead: Standard 3/5 lead Lead Mode: 5 Leads (RA, LA, LL, RL,V) Lead Selection: I, II, III, avR, avL, avF, V Lead Mode: 3 Leads (RA, LA, LL) Lead Selection: I, II, III, Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV HR and Alarm Range: Adult: 15 ~ 300 bpm Ped/Neo: 15 ~ 350 bpm Accuracy: ¡À1% or¡À1bpm, which is greater Resolution: 1 bpm Sensitivity: > 200 (uVp-p) Differential Input Impedance: > 5 M¦¸ Bandwidth: Surgery 1 ~ 20 Hz Monitor 0.5 ~ 40 Hz Diagnostic 0.05 ~ 130 Hz CMRR: Monitor > 100 dB Operation > 100 dB Diagnosis > 90 dB Electrode Offset Potential: ¡À300mV Range: ¡À2 mV ~ ¡À700 mV Width: 0.1 ms ~ 2 ms Rise time: 10 us ~ 100 us ST Segment Monitoring Range: Measurement Range: -2.0 ~ +2.0 mV Measurement Accuracy: -0.8 ~ +0.8 mV Measurement Error: ¡À0.02 mV or ¡À10% RESP Method: Impedance Between RA-LL or RA-LA Measuring Impedance Range: 0.3~3 ¦¸ Base line Impedance Range: 200~4 K¦¸ Bandwidth: 0.1~2.5Hz NIBP Method: Oscillometric Mode: Manual, Auto, STAT Measuring Interval in Auto Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min) Measuring Period in STAT Mode: 5 Min Pulse Rate Range: 40 ~ 240 bpm SpO2 Measuring Range: 0 ~ 100 % Resolution: 1 % Accuracy: 70% ~ 100% ¡À2 % 0% ~ 69% unspecified Pulse Rate: Measuring Range: 20~300 bpm Resolution: 1bpm Accuracy: ¡À3bpm TEMP Applicable Temperature Sensor: YSI, CYF Channel: 1 Measuring Range: 0 ~ 50 ¡æ Resolution: ¡À0.1 ¡æ Accuracy: ¡À0.1 ¡æ (Do not including sensor error)  Dimension: 210*80*175mm (L*W*H)  Weight: 1.35kg  Standard: 3/5-Lead ECG, RESP, SpO2, NIBP, PR, 1-TEMP  Optional: Mainstream/Sidestream EtCO2

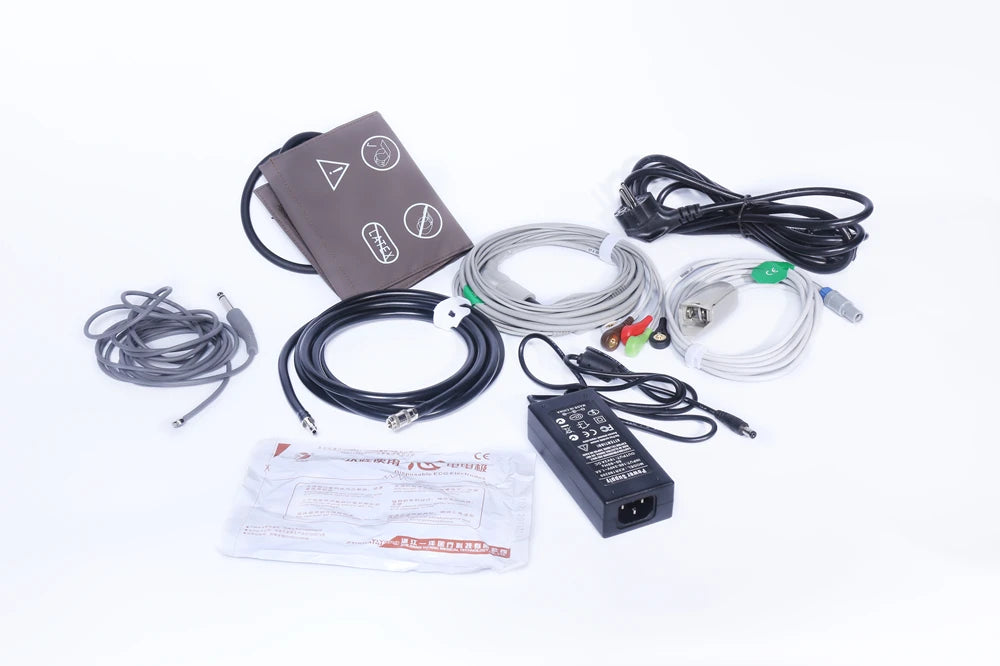

Packing List:	Monitor Main unit 1pc ECG cable(3 or 5leads) 1pc Adult Use Spo2 probe 1pc Adult use NIBP 1pc Temperature probe user manual(English) AC/DC power cord, power adapter, Ground electrode
