SPECIFICATIONS
After-sale Service: Free spare parts
Application: Health Care,treatment,Support,COMFORTABLE,Hospital,PAIN RELIEF,For Home Use,SPA,SALON,other,rehabilitation center,clinic,Psoriasis, Vitiligo
Brand Name: Kernel
Bulb brand: Philip
Certificate: CE ISO
Feature: Massage,Adjustable,other,Durable,Sterilization,Easy operation
Instrument classification: Class II
Light Source: Ultraviolet
Model Number: KN-4003BL2
Place of Origin: Jiangsu, China
Power: 15w
Power Supply: AC220V 50Hz
Power supply: AC/DC
Product name: UV Phototherapy
Warranty: 1 Year,1 Year
Wavelength: 311nm
Wavelengths: 311nm
irradiation area: 55cm2
model: KN-4003BL2

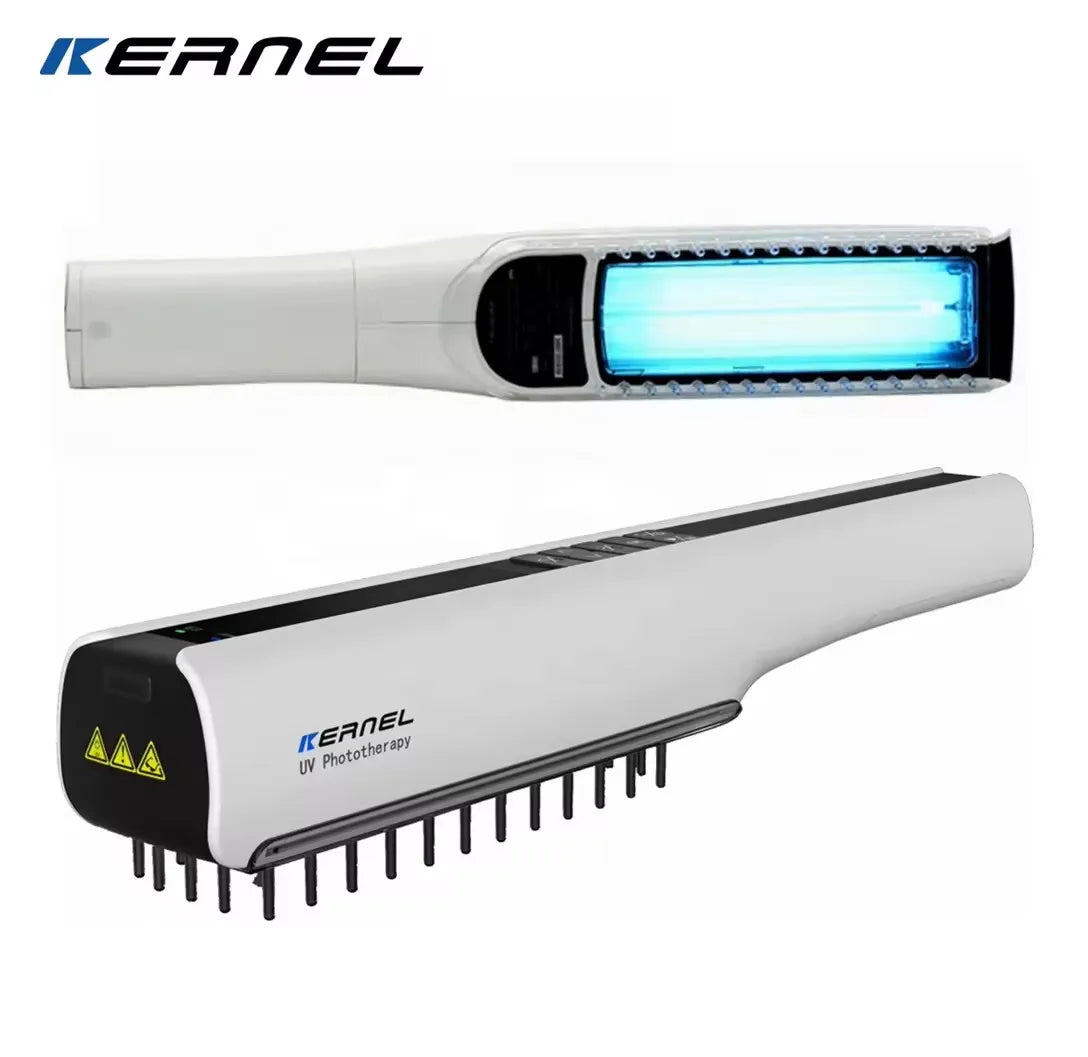

Handheld Portable PHILIPS UV LAMPS UVA/ UVB phototherapy for skin vitiligo psoriasis eczema treatment

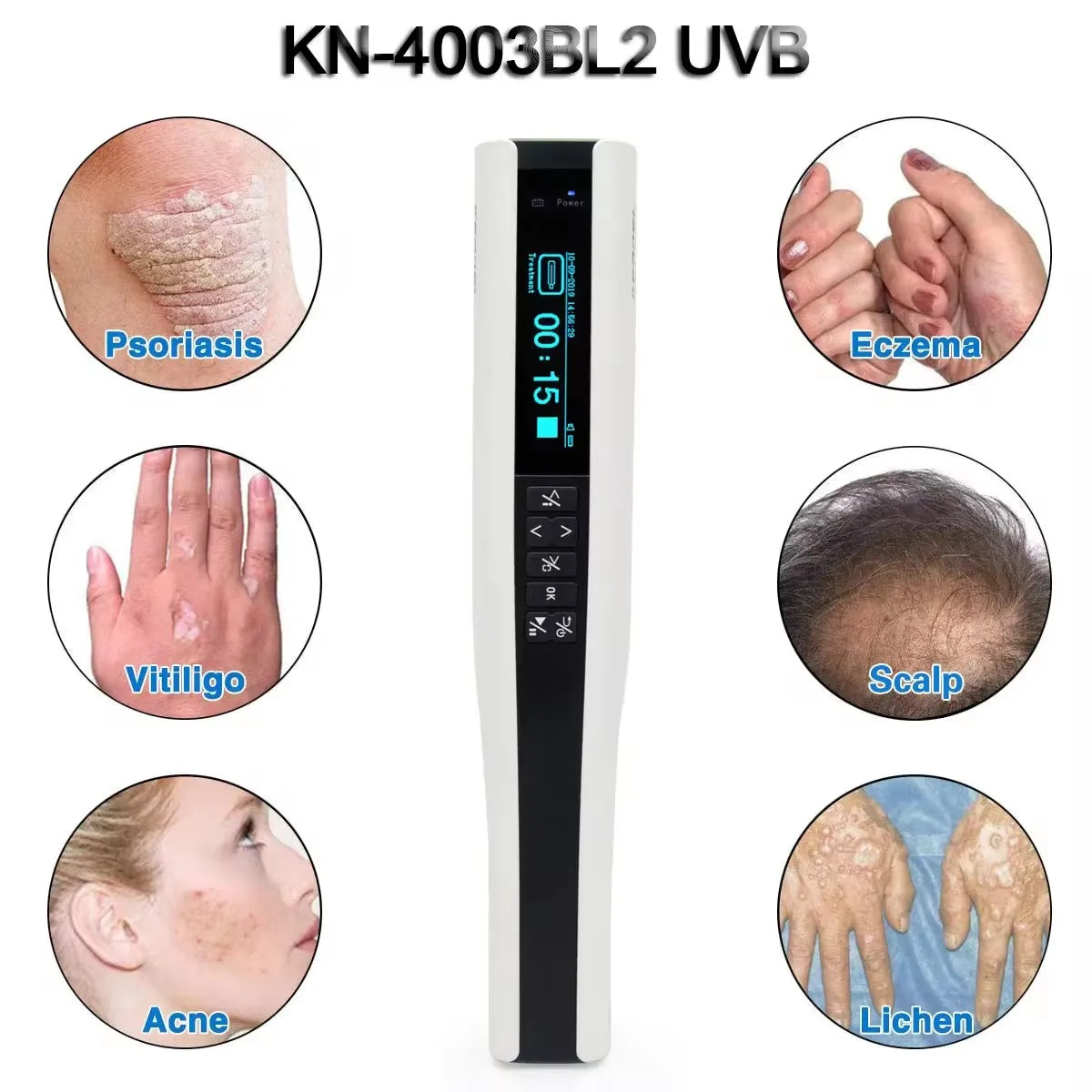

Indications:
Psoriasis, Vitiligo, Eczema, Chronic eczema, Neurodermatitis, Atopic dermatitis and other skin diseases.

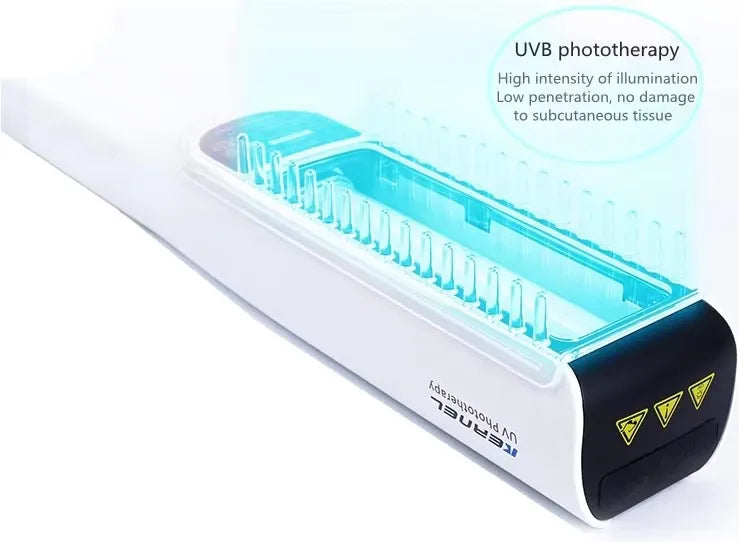

Narrow Band UVB phototherapy is considered a first-line treatment for many conditions such as psoriasis,
vitiligo and eczema, is safe enough for pregnant women and children to use, and has none of the serious
side effects .
UV lights slow abnormal growth of skin cells and can help create repigmentation.
Technical parameter |
|
Light source |
Netherlands Philips UV lamps |
Model |
KN4003BL2 |
Intensity |
4.5mW/cm2 |
Irradiation areas |
55cm2 |

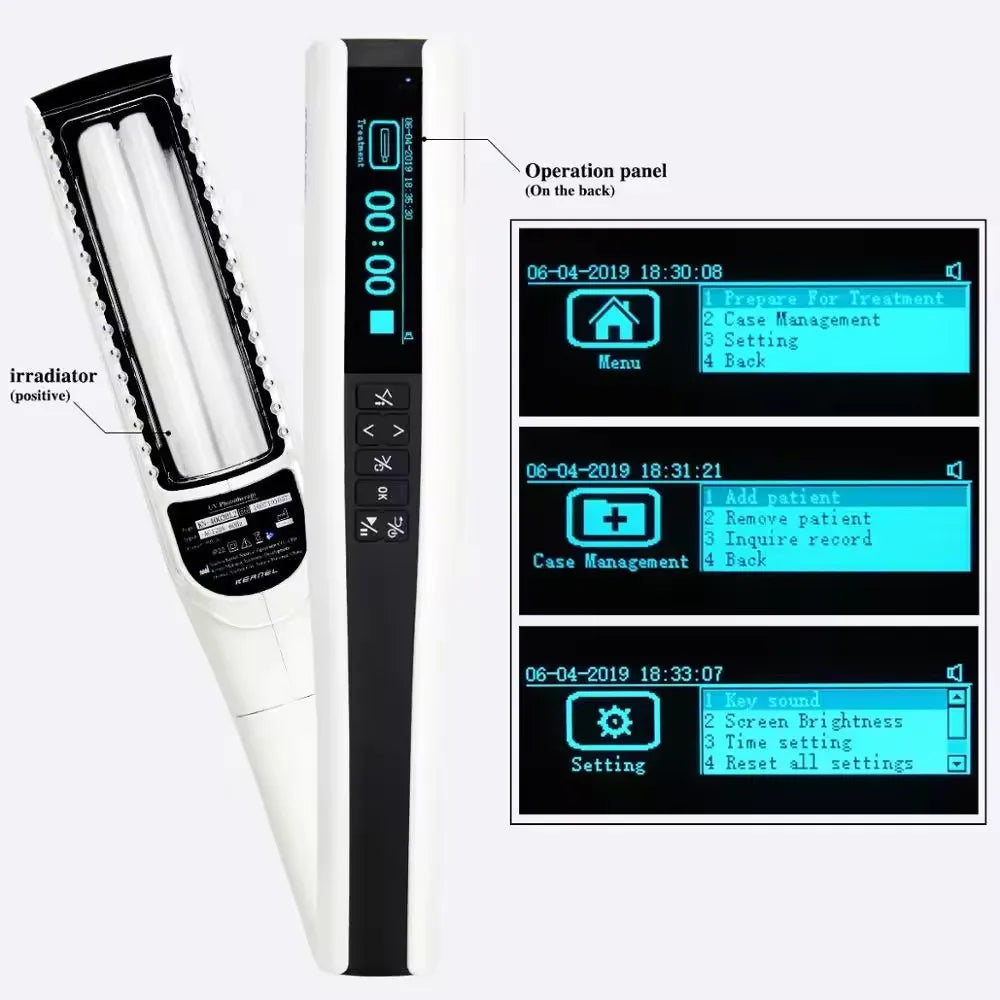

Functions |
case management\electronic prescription |
Application People |
People who travel oftenly, out of business, international student etc. |
Title goes here.
Area：55c㎡±10%Working voltage：AC 120V-230V, 50-60HzRated
power：50VA
Wavelength: 311nm UVB
Light source: Medical Philips UV lamps
Light strength: 4.5mW/cm2±10% (UVB)
* NOTE
International orders can provide products and power plugs with working voltage of other specifications.

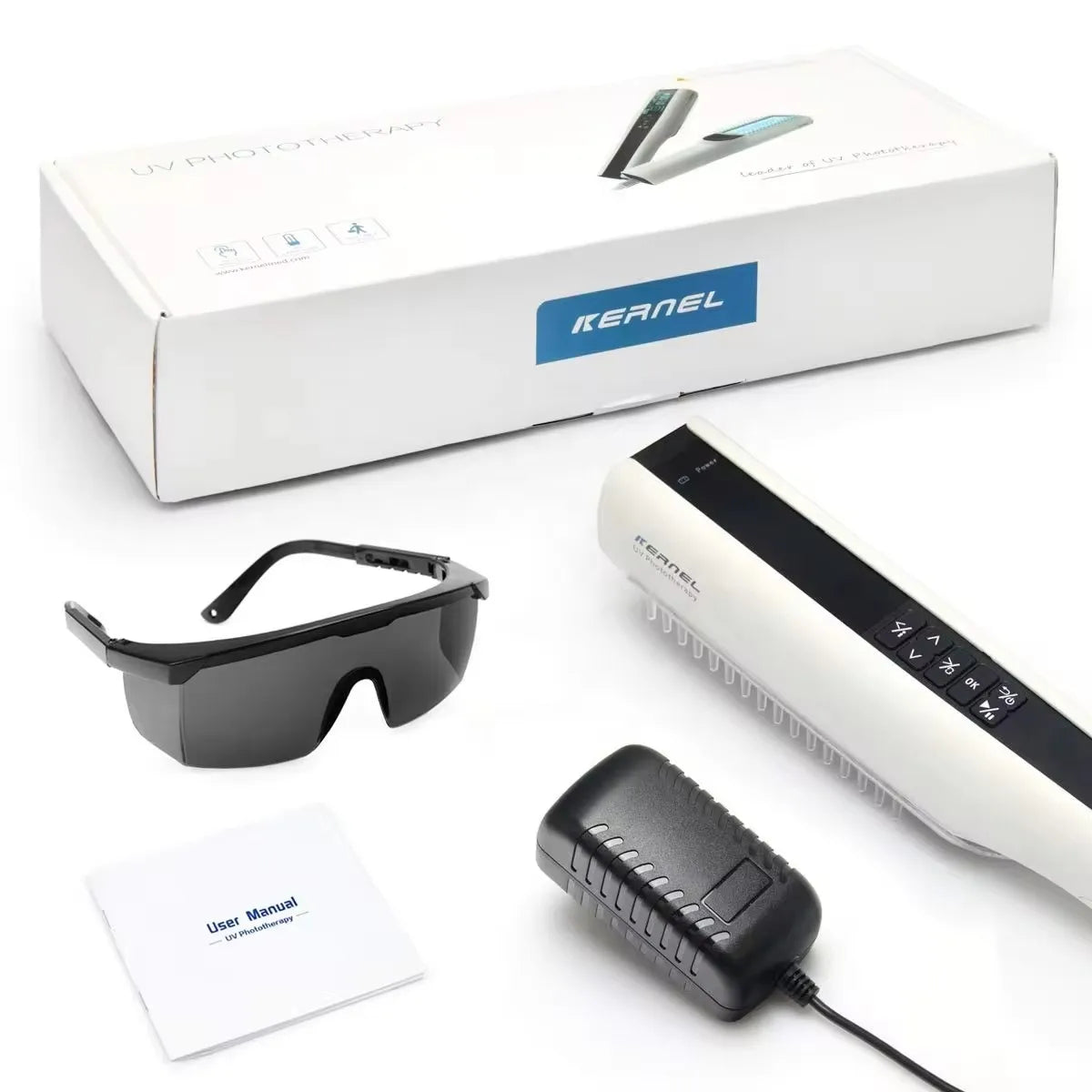

This product can be used at home and clinic. Please check the User's manual for the use method. If you have any questions, please
consult by email.
Advantage
* NB uvb 311nm , QUICK effect, NON-invasive

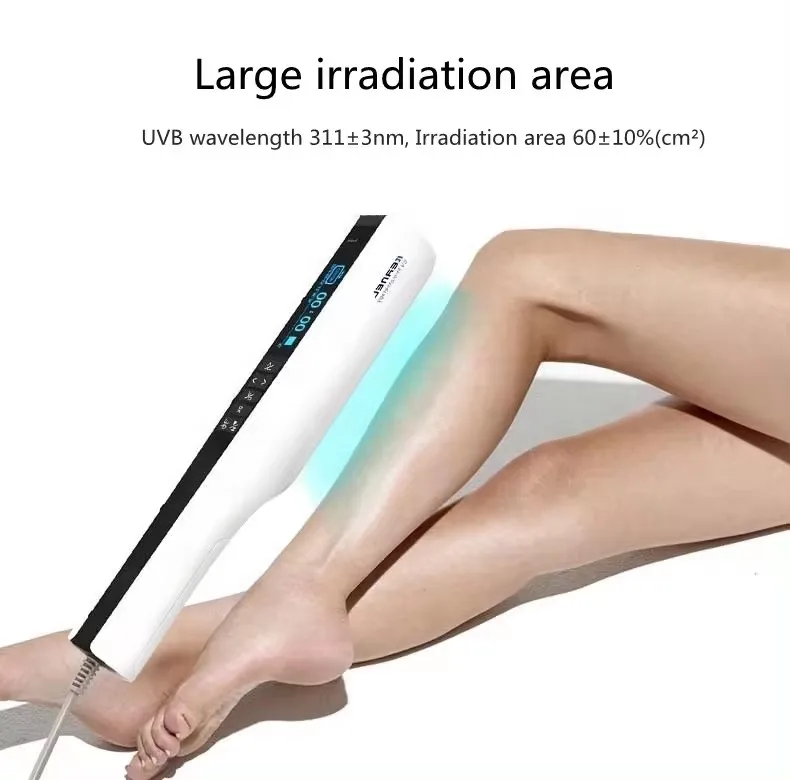

* Big treatment area 60 cm2.
* More than 1000 hrs lamp life，Intensity 4.5mW/cm2
* Timer work mode

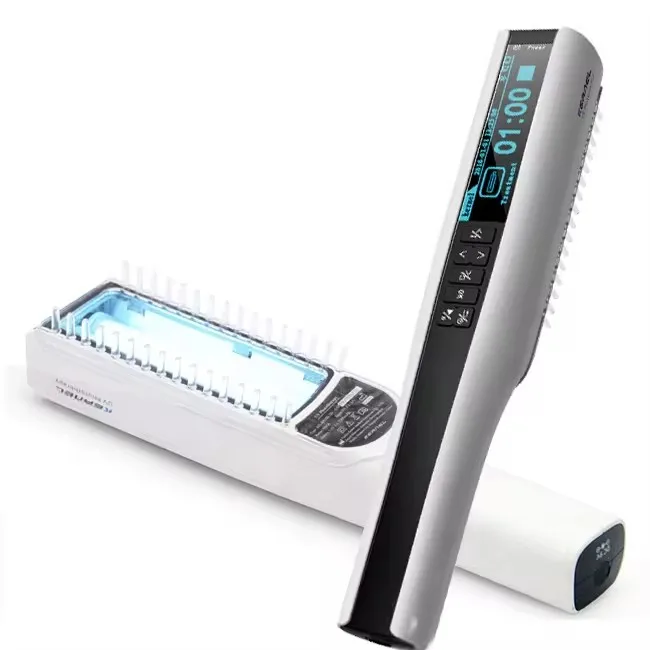

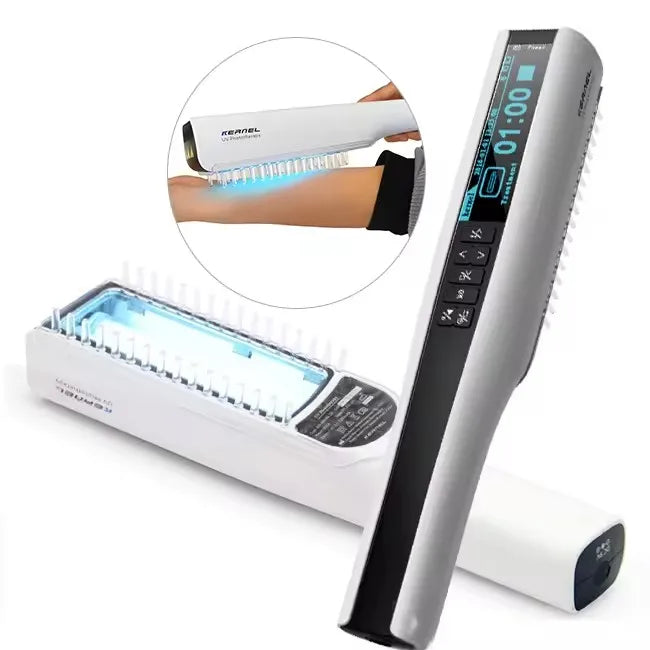

* LED screen ,* Handheld flexible irradiation site
Different Part， Different Dose
Initial dose and increment (reference value)
(1) Vitiligo 150-200mj/Cm2
(2) Psoriasis 300mj/Cm2
1. Face, Perineum: 150-180mj/Cm2
Increment:
no red: plus 50-80mj/Cm2;
Red spot is less than 12 hours: plus 30-50mj/Cm2
Red spot one day: can be maintained
Red spots more than one day: should consider reducing the dose
2. Palm, Foot surface: 400mj/Cm2
Increment:
no red can add 200mj/Cm2
3. Trunk, limbs: 200-250mj/Cm2
Increment:
Red spot is less than 12 hours, plus 50mj/Cm2
Not red: add 100mj/Cm2
Warranty
The lamp comes with 1 year manufacturer's warranty (500 hours for bulbs)
How to use UV Phototherapy?
Before treatment
Before treatment: the first step, please take a bath for 15 to 20 minutes to remove skin surface scales;
The second step, patients need to determine the MED.
Note:
1.Intensity of KN - 4003 - B/BL is 4.5 mW/cm2
2. MED calculation method for: irradiation time S = dose (J/cm2) * 1000/10 (mW/cm2)
Treatment:
Psoriasis:
3 ~ 4 times / week, 15 ~ 20 times / treatment course.
Vitiligo:
2 ~ 3 times / week, need treatment for 30 ~ 50 times or more.
Parapsoriasis:
PUVA, UVA/UVB,NB-UVB: 4 times / week, until histology improvement.
Dose adjustment:
A. No erythema effect or Previous light erythema effect disappeared
Every time increase 20~ 25% dose.
B. Mild erythema effect
Same as the last dose or increase 10% dose,if erythema effect disappears,same as A .
C. Asymptomatic, clear the shinning erythema
Stop treatment for one time, then with the same exposure, later every time by 10% gradually increasing dose.
D. The pain of erythema, or with edema,blister
Stop treatment, until recovery. Reduce the dose half,
