SPECIFICATIONS
After-sales Service Provided: Video technical support,Online support,Free spare parts
Applicable Tube Size: outer diameter 2mm~6mm, thickness≤1mm
Application: hospital,medical,lab,clinical
Application fields: hospital, medical
Certificate: CE
Heat Sealing Time: 0.8S~1.2S
Power: 24V 2000mAH / 5.76Wh
Product name: Auto hand held blood bank tube sealer
Sealing Type: High-Frequency Sealing
Sealing type: Thermal Heating Sealing
Voltage: 220V
Warranty: 1 year for free,technical support for life
Weight: 4
Weight (KG): 4
automatic grade: Automatic
brand name: KETHINK
core components: PLC,motor
dimension(l*w*h): 205mmx145mmx55mm
driven type: Electric
key selling points: hand held,Automatic
machinery test report: Provided
packaging material: Plastic
packaging type: carton
place of origin: Hunan, China
video outgoing-inspection: Provided
warranty: 1 Year
KETHINK

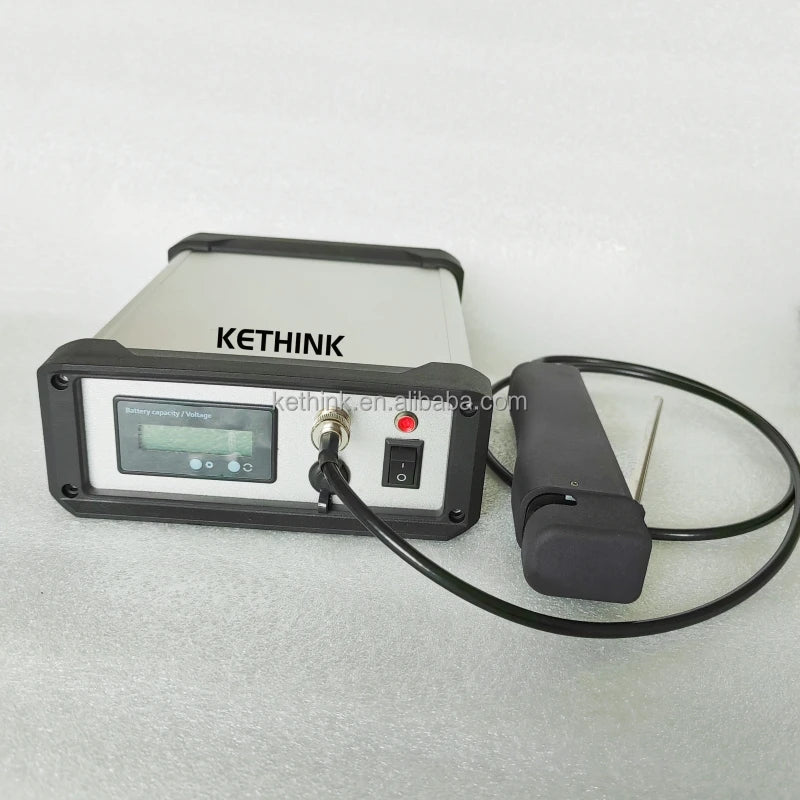

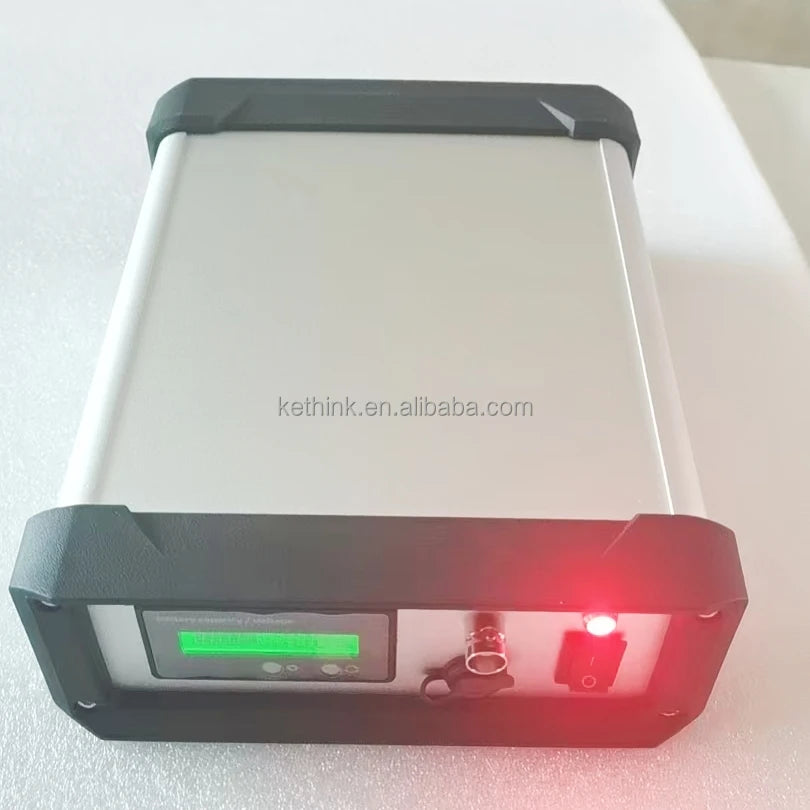

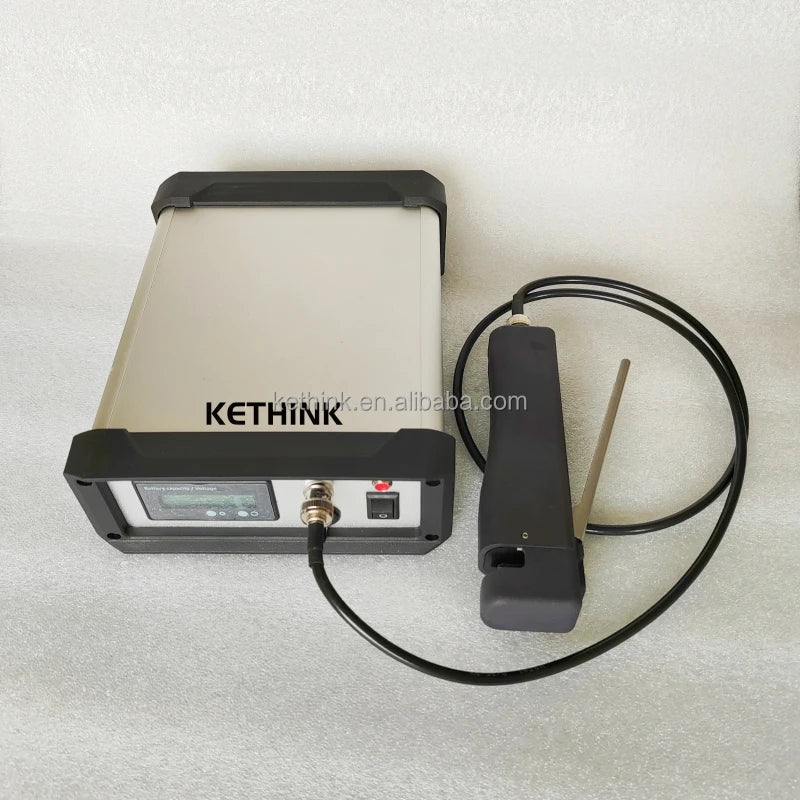

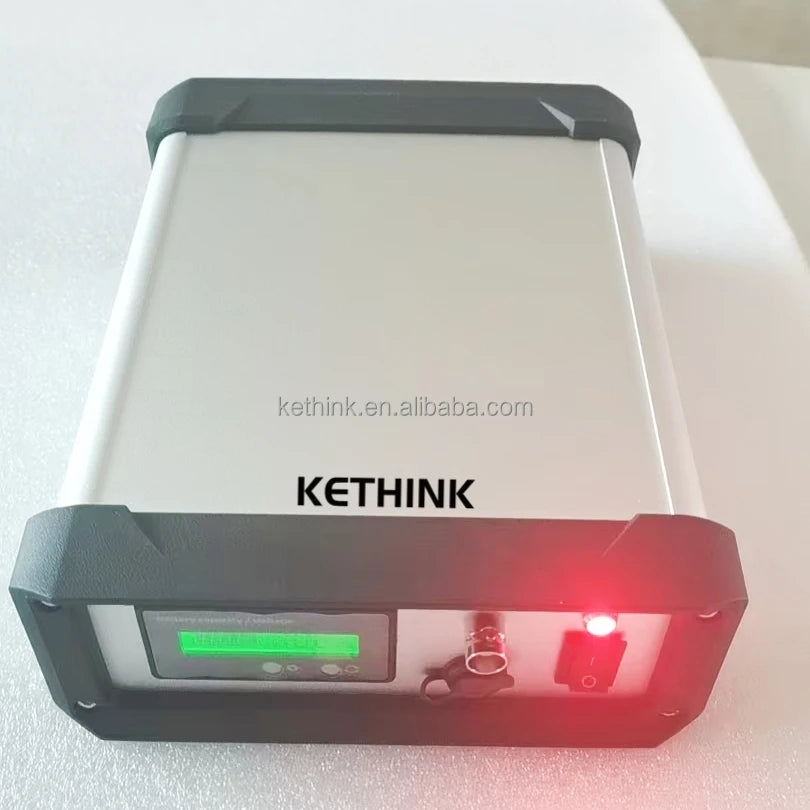

KT-FR-7.0 with battery hand held high frequency Tube Sealer for blood bags Automatic thermal sealer for blood bank hospital medical use
Product Overview:
The fully automatic high-frequency heat sealing device is used for sealing and heat sealing medical PVC blood collection bag catheters. Mainly applicable to transfusion departments, blood collection and component departments, blood banks, and medical research institutions at all levels of hospitals.
Working Principle:
The high-frequency electrode on the heat sealing head conducts high-frequency induction heating on the PVC pipeline, causing the PVC pipeline to reach a molten state (the PVC material conduit is molecularly polarized under high-frequency electric field). At the same time, the heat sealing electrode compresses the molten part, and according to the preset program, completes one heat sealing after reaching the predetermined time.
Product Features:
1. Using branded high-frequency transistors, no preheating required, continuous heat sealing power without attenuation
2. Filter shielding design, close to zero radiation, ensuring user safety.
2. Multiple voltage protection, mature and stable circuit, with a service life of over ten years.
3. The heat sealing process is fully automated, without the need to manually adjust the heat sealing time.
4. Safety splash guard and heat sealing head protective cover configuration, ensuring safety, no pollution, and easy cleaning
5. Ceramic wrapped heat sealing head design, with a flat and secure heat sealing surface that does not leak, avoiding hemolysis.
6. Reserve a groove shaped tangent line for the heat sealing head, and gently pull it with both hands to separate after heat sealing.
7. Easy to operate, small in size, light in weight, easy to move, with a handle design that can be carried anywhere.
8. Wide voltage design, compatible with global voltages, and compatible with standard plugs from various countries.
9. Built in lithium iron phosphate battery, high safety, worry free long-distance transportation.
10. It can be used normally with or without an external power source, and it is more suitable for mobile emergency use if it can be used for both purposes.
Application:
Mainly applicable to hospital blood transfusion department, blood collection department and component department, blood bank and medical scientific research.
Power Supply |
Input:AC110V/220V±22V,50Hz/60Hz,0.7A / Output:DC 3.2V |
RF OUTPUT |
Frequency 40.68MHz±10KHz |
Voltage/battery capacity |
24V,2000mAH / 5.76Wh |
Heat sealing quantity |
Fully charge takes 1.8h, can seal 350-500times (depends on ambient temperature), work time≥3h |
Power |
Work：85W / Standby：3W |
Sealing time |
2.5s |
Application |
PE or PVC, outer dia 2mm--6mm，thickness ≤1.5mm |
Key parts |
Sealing handle+control box |
Accessories |
Canvas portable bag/3-meter long adapter cable/charger |
Dimension |
205mm× 145mm× 55mm |
Packing size |
315mm× 215mm× 115mm |
Net/gross weight |
2kg / 4kg |
Packing:
1) Waterproof membrane;
2) Shockproof packaging;
3) Standard export wooden box
Shipping:
1) By sea;
2) By air;
3) DHL, Fedex, TNT, UPS, EMS & CDEK
4) By land.
1.Warranty
1 year for free,techinical support for life.
2.Training
On-line free training or welcome to visit our factory for free training.
3.Within Warranty
Accessories offered for free if the product has quality problem. If damaged by wrong operation, accessories charged, free technical support.
4.Out of Warranty
Only damaged parts charged, technical support is for free.5.OEM & ODM SERVICE
customized shell,control system interface,language, logo,packing.

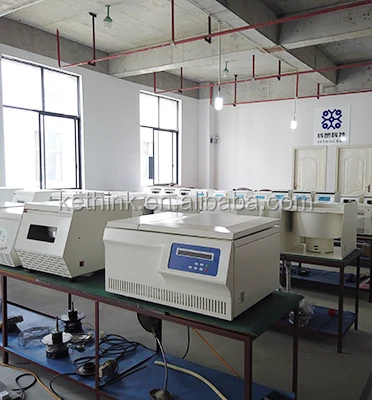

CHANGSHA KETHINK S&T CO.,LTD. is a professional experimental instruments and protective equipments manufacturer based in Changsha,Hunan. We have been in experimental instrument developing and producing field for over 20 years, and we are growing fast in medical /non-medical protective products as well. With factory based in Changsha & Zhuzhou, experts indeveloping
