SPECIFICATIONS

After-sale Service: Online technical support

Application: X-ray Room .Radiography Department ~

Brand Name: Shoimage

Certificate: CE Certificate

Function: Medical Radiography

Image system: 750mm*530mm*1680mm

Instrument classification: Class II

Keyword: C arm

Mobile stand: 1800mm*800mm*1850mm

Model Number: SHOCII-3.5KW

Payment: T/T

Place of Origin: Jiangsu, China

Power supply: 110KV,3.5kW,40kHz

Power Source: Electric

Product name: 3.5KW Image intensifier Mobile C arm Machine

Quality Certification: ce

Shelf Life: 2 years

Warranty: 2 years,24 Months

Shoimage@Imaging World: DR X-ray machine, Digital Mammography System, Dynamic Digital Radiography/Fluoroscopy System, Angiography, CT Scanner, C arm, Ultrasound. Highly welcome you choose us to work on this products.

Product details

Model : SHOCII-3.5KW

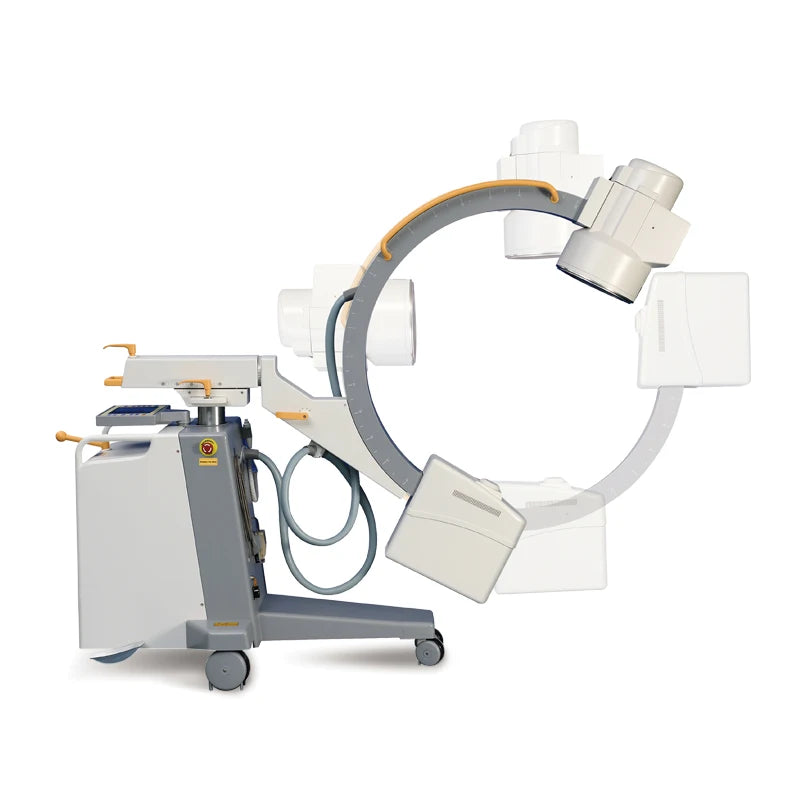

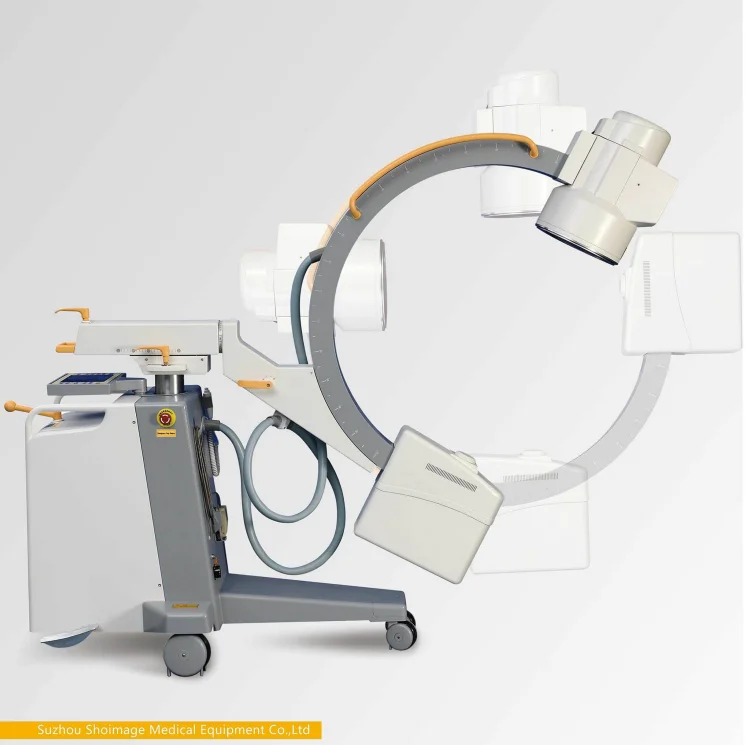

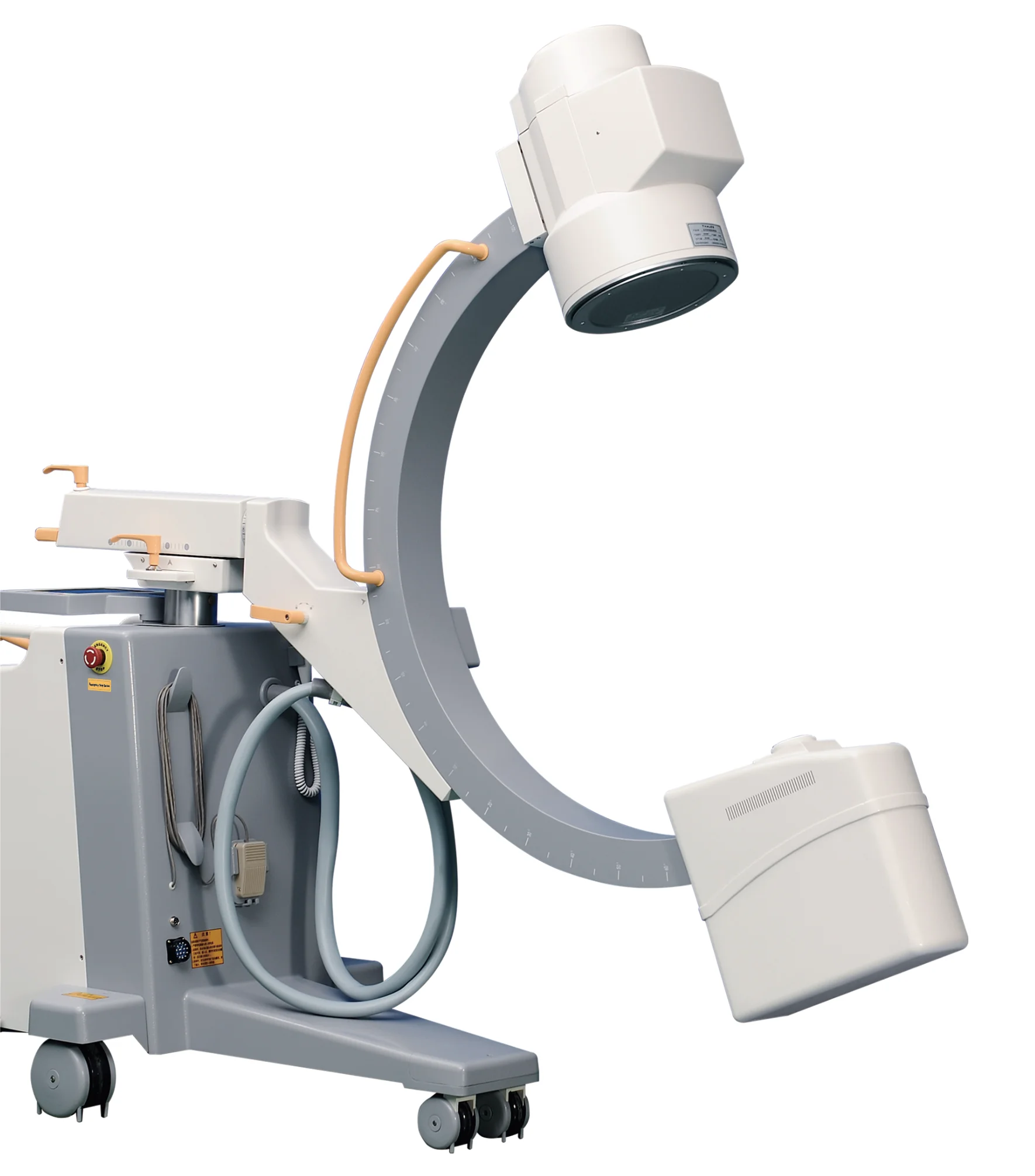

3.5KW Image Intensifier X ray machine

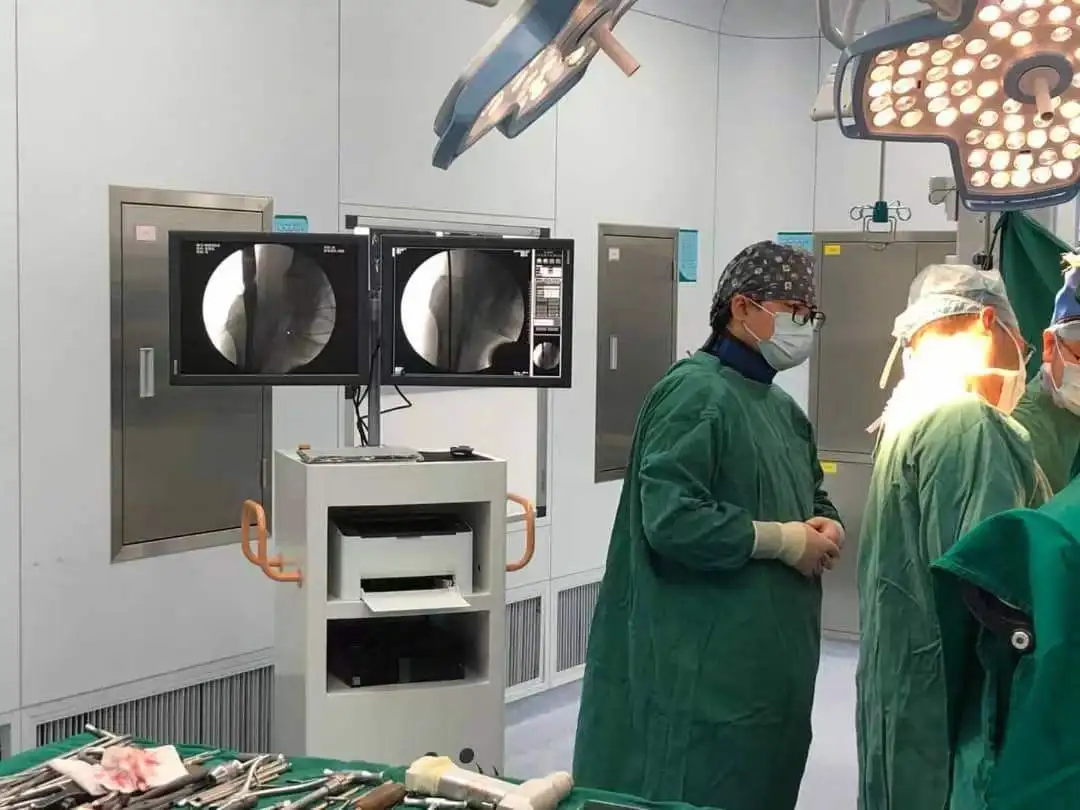

Widely use in operating room,X-ray department,emergency room,intervention and peripheral angiograehy General surgery,urology,chestsurgery,trauma,spinesurgery, abdominal surgery,orthopedics,bone reduction and fxation, endoscopy and surgery.Intervertebral disc angiography and angioplasty.

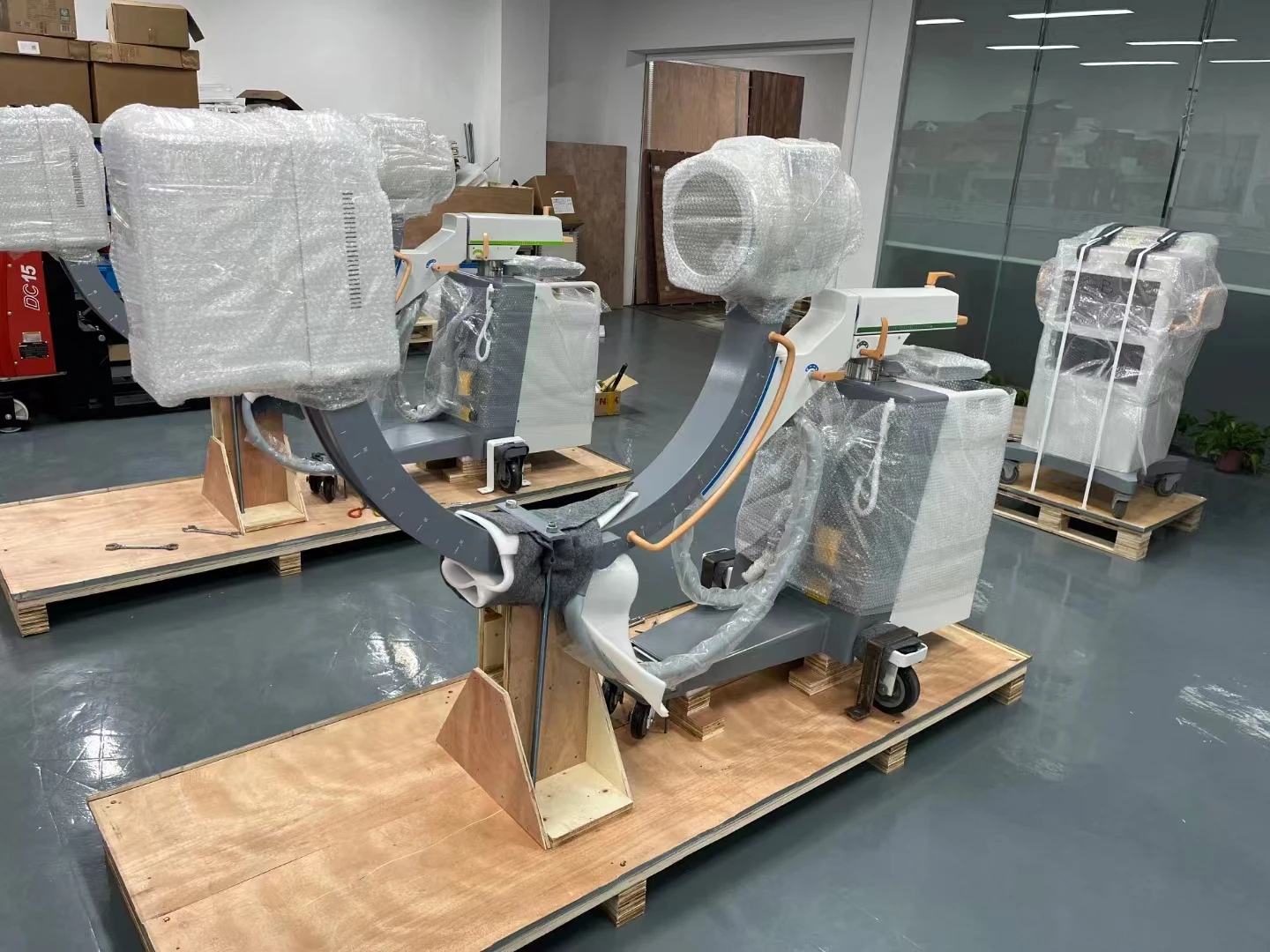

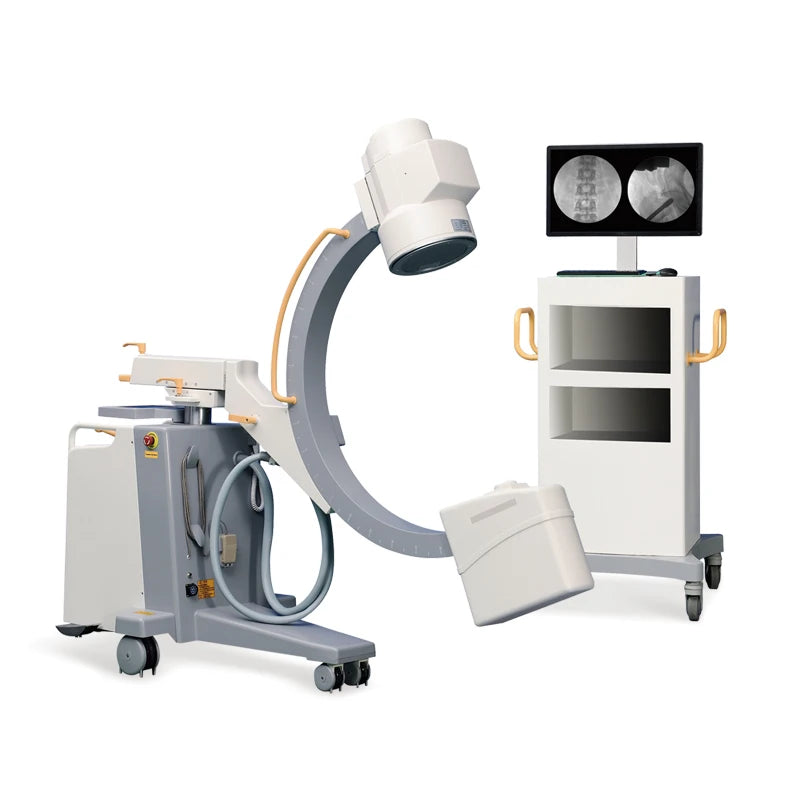

C-arm machine packing by wooded case,domestic X-ray tube with Italy IMD Technology, Japan Canon image intensifier, Japan watt brand CCD camera and 360°C rotation,
24inch Dell brand monitor display and trolley

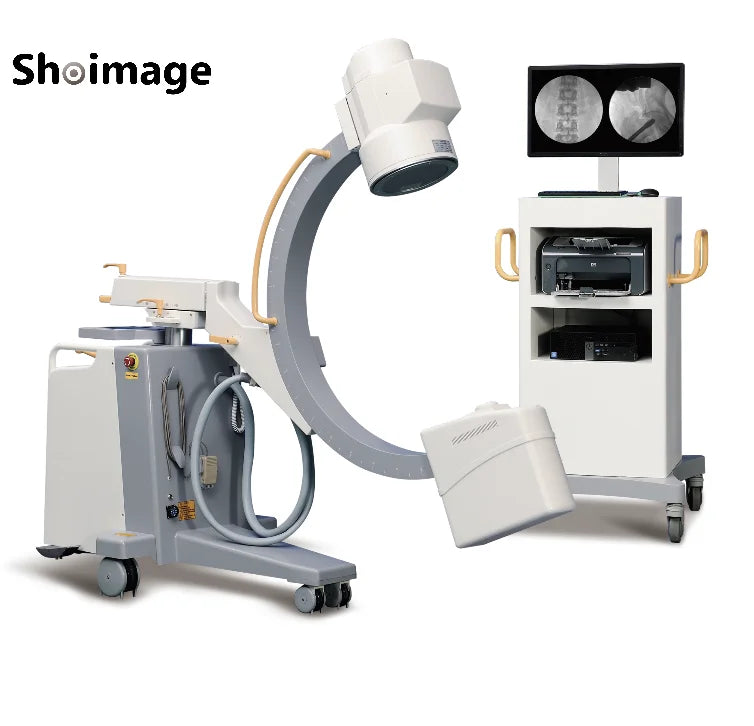

high quality clear image effect,big monitor 24 inch.Good after serivices,2 years warranty,online engineer remote operation,affordable high profile Image intensifier C-arm machine model：SHOCII-3.5KW and can also choose 5kw.

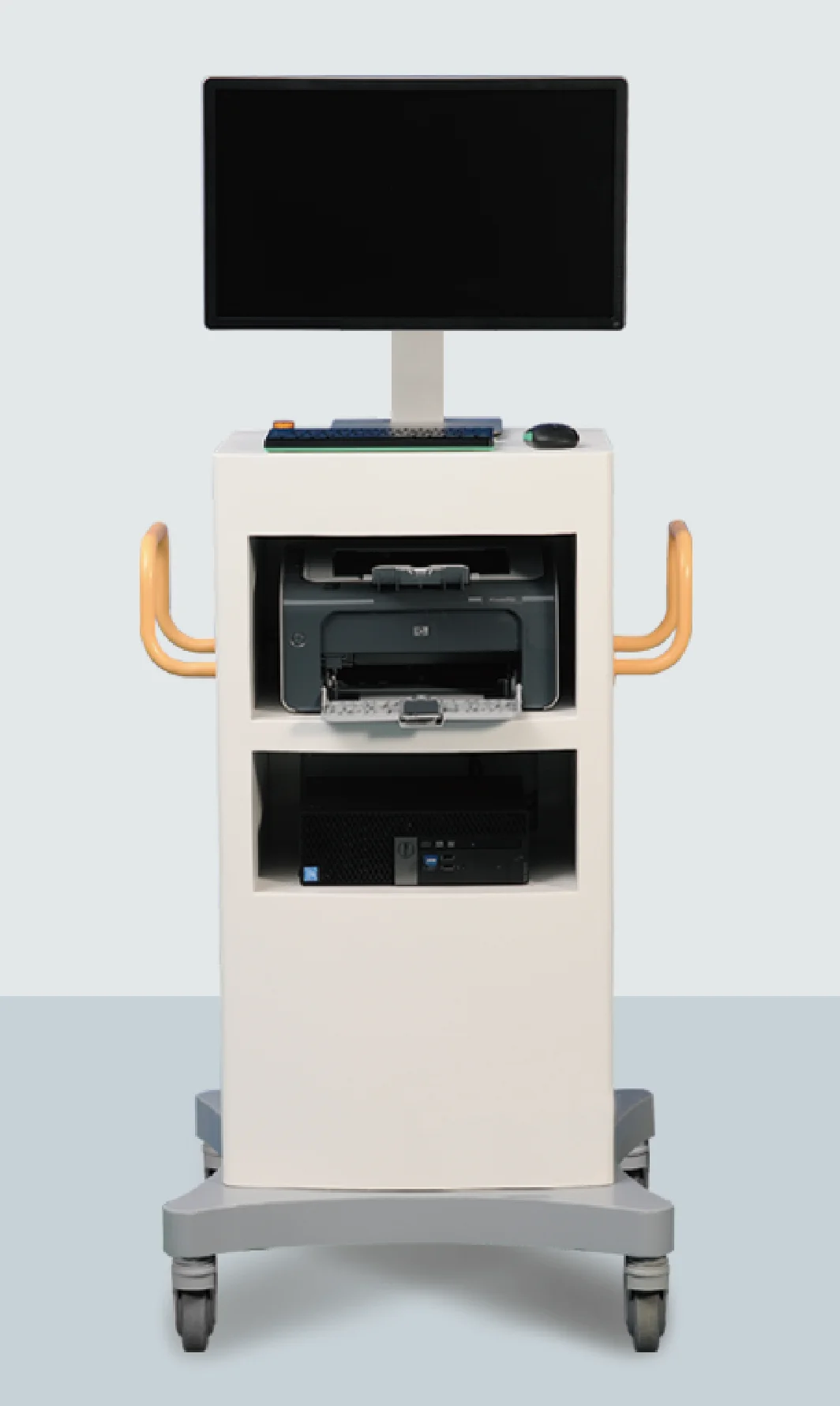

medical grade trolley with two box can put printer can cpu.Split type C-arm,flexibility and operability,‌ safety and stability,‌ versatility and scope of application,‌ ease of maintenance and upgrade.

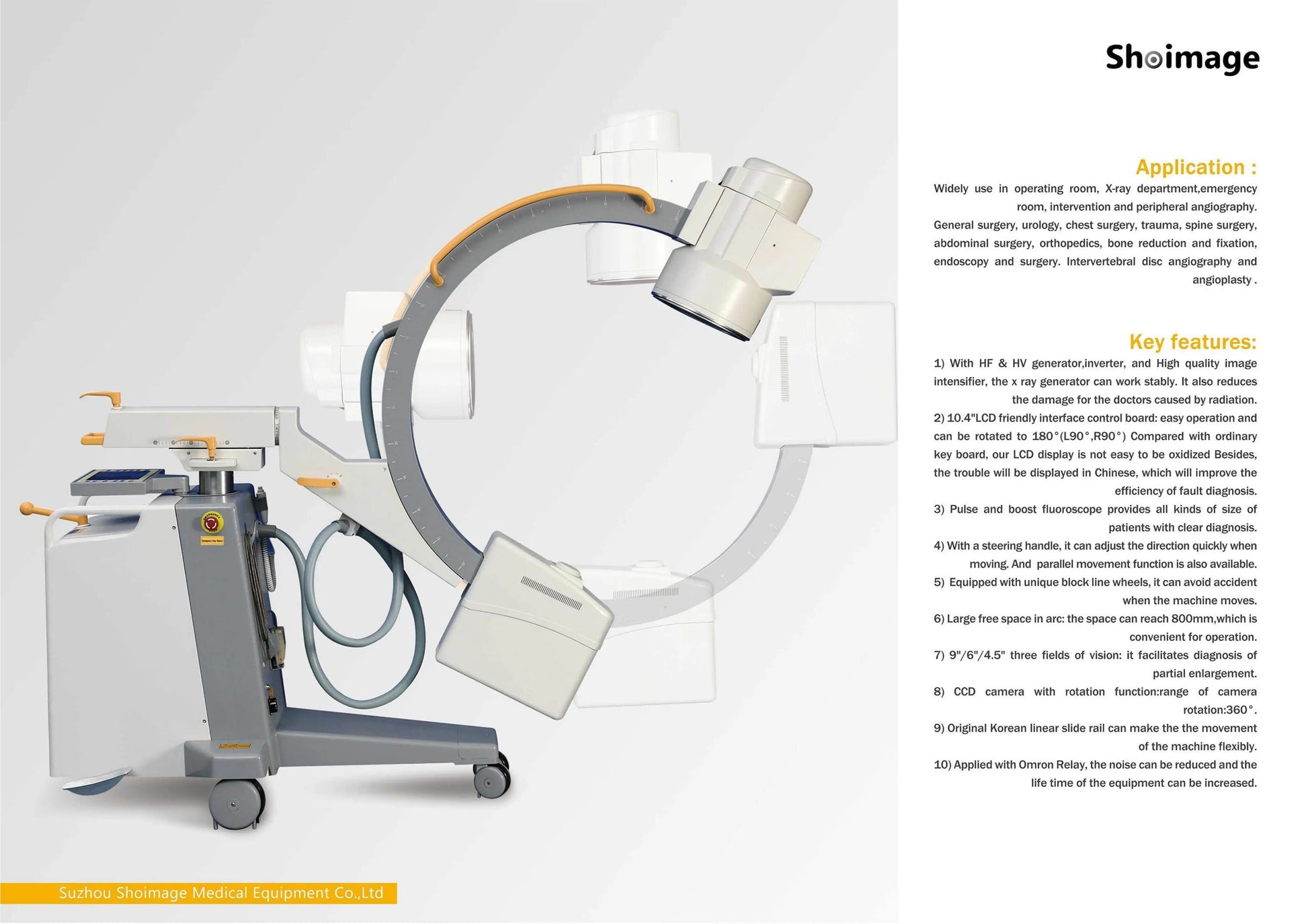

Product Feature for  x ray machine price in pakistan x ray machine for hospital x ray machine price:
1	With HF &HV generator,inverter,and High quality image intensifier,the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.
2	10.4"LCD friendly interface control board:easy operation and can be rotated to 180(L90°,R90°)Compared with ordinary key board,our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese,which will improve the efficiency of fault diagnosis
3	Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4	With a steering handle,it can adjust the direction quickly when moving.And parallel movement function is also available.
5	Equipped with unique block line wheels,it can avoid accident when the machine moves
6	Large free space in arc:the space can reach 800mm,which is convenient for operation.
7	9"/6"/4.5"three fields of vision:it facilitates diagnosis of partial enlargement
8	CCD camera with rotation function:range of camera rotation:360°
9	Original Korean linear slide rail can make the the movement of the machine flexibly.
10	Applied with Omron Relay,the noise can be reduced and the life time of the equipment can be increased.

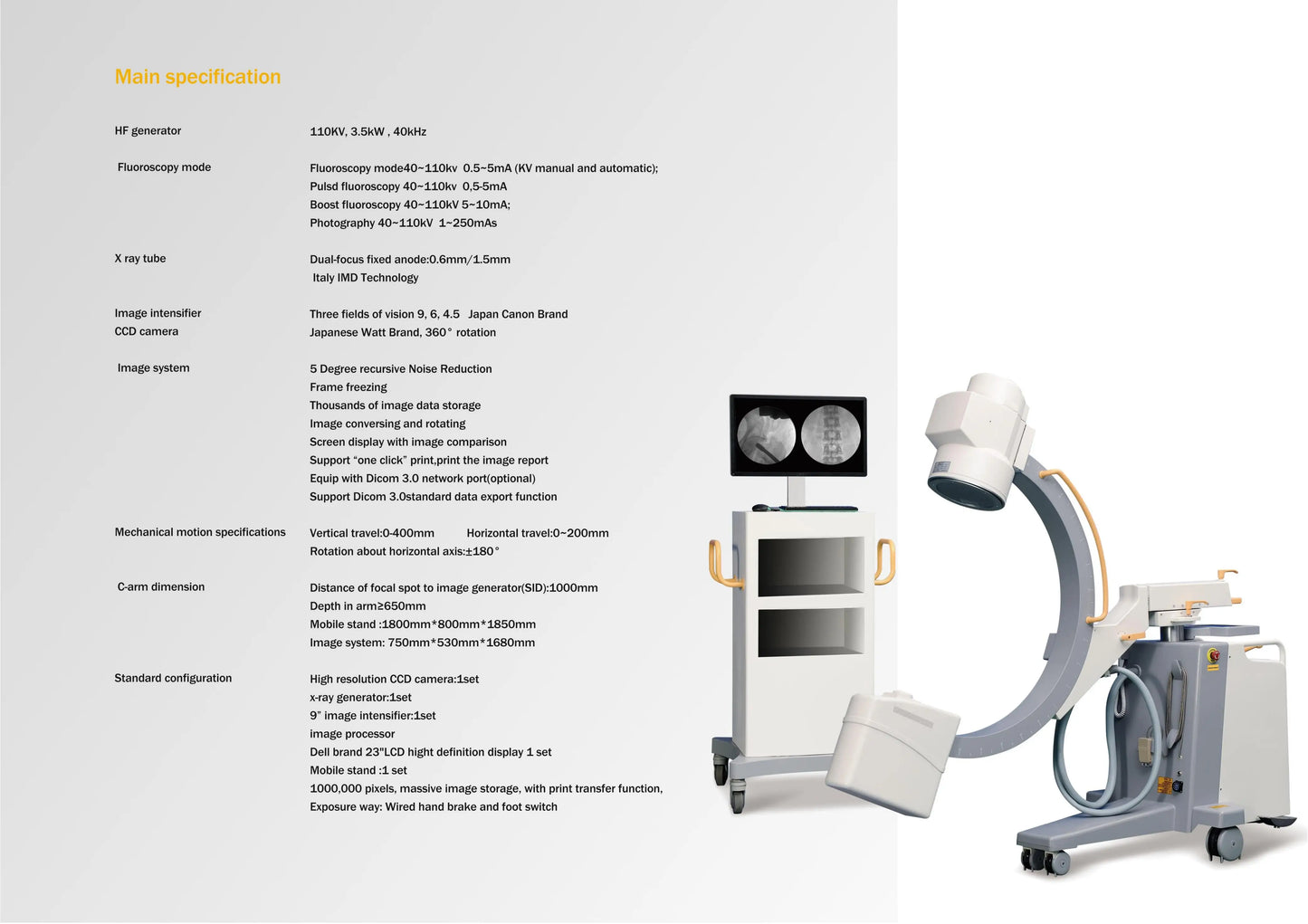

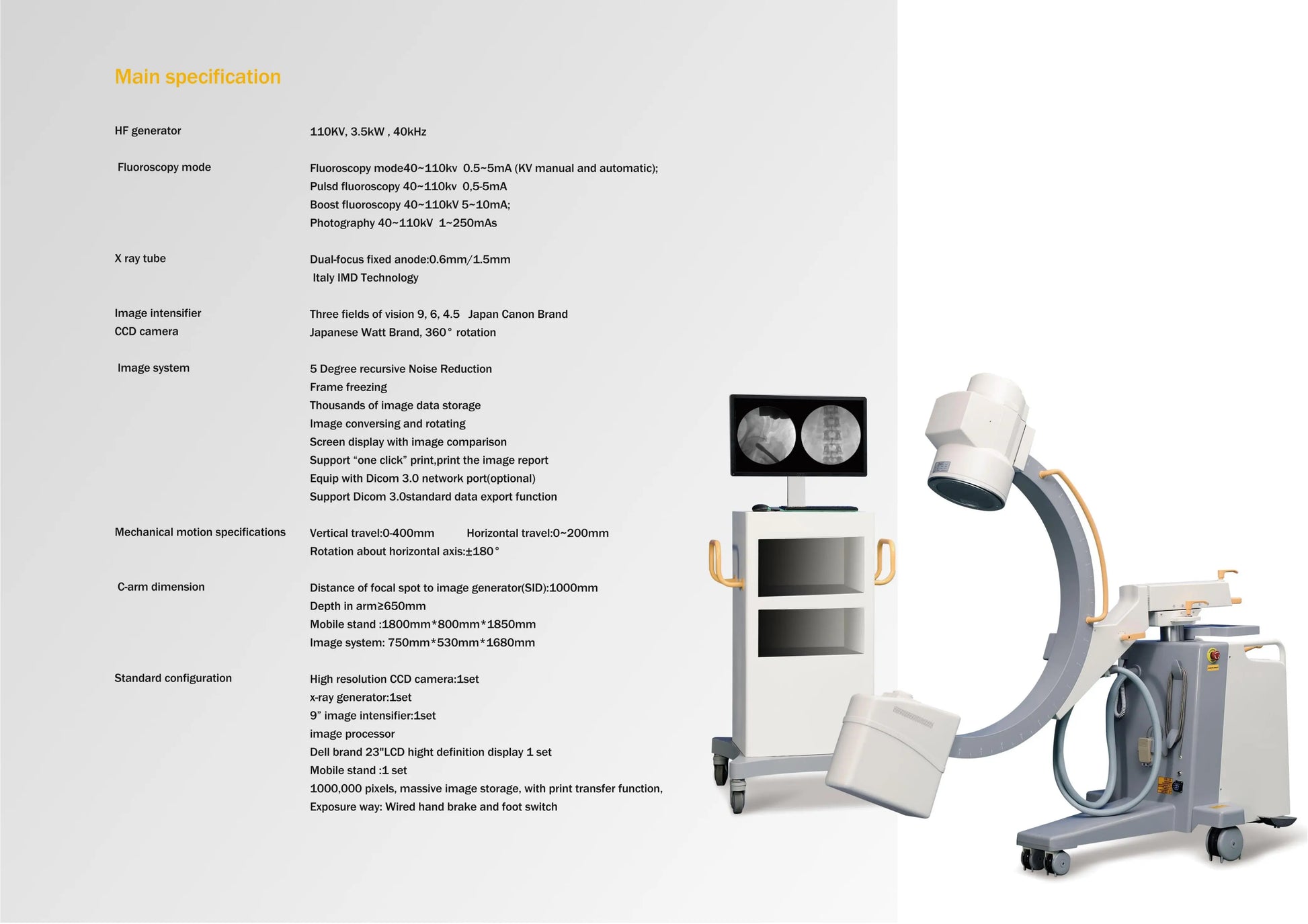

Main specification for x ray machine price in pakistan x ray machine for hospital x ray machine price:
HF generator	110KV,5kW,40kHz
Fluoroscopy mode	Fluoroscopy mode40~110kv 0.5~5mA (KV manual and automatic); Pulsd fluoroscopy 40~110kv 0,5-5mA Boost fluoroscopy 40~110kV 5~10mA; Photography 40~110kV 1~250mAs
X ray tube	Dual-focus fixed anode:0.6mm/1.5mm ltaly IMD Technology
Image intensifier	Three fields of vision 9,6,4.5 Japan Canon Brand
CCD camera	Japanese Watt Brand,360°rotation

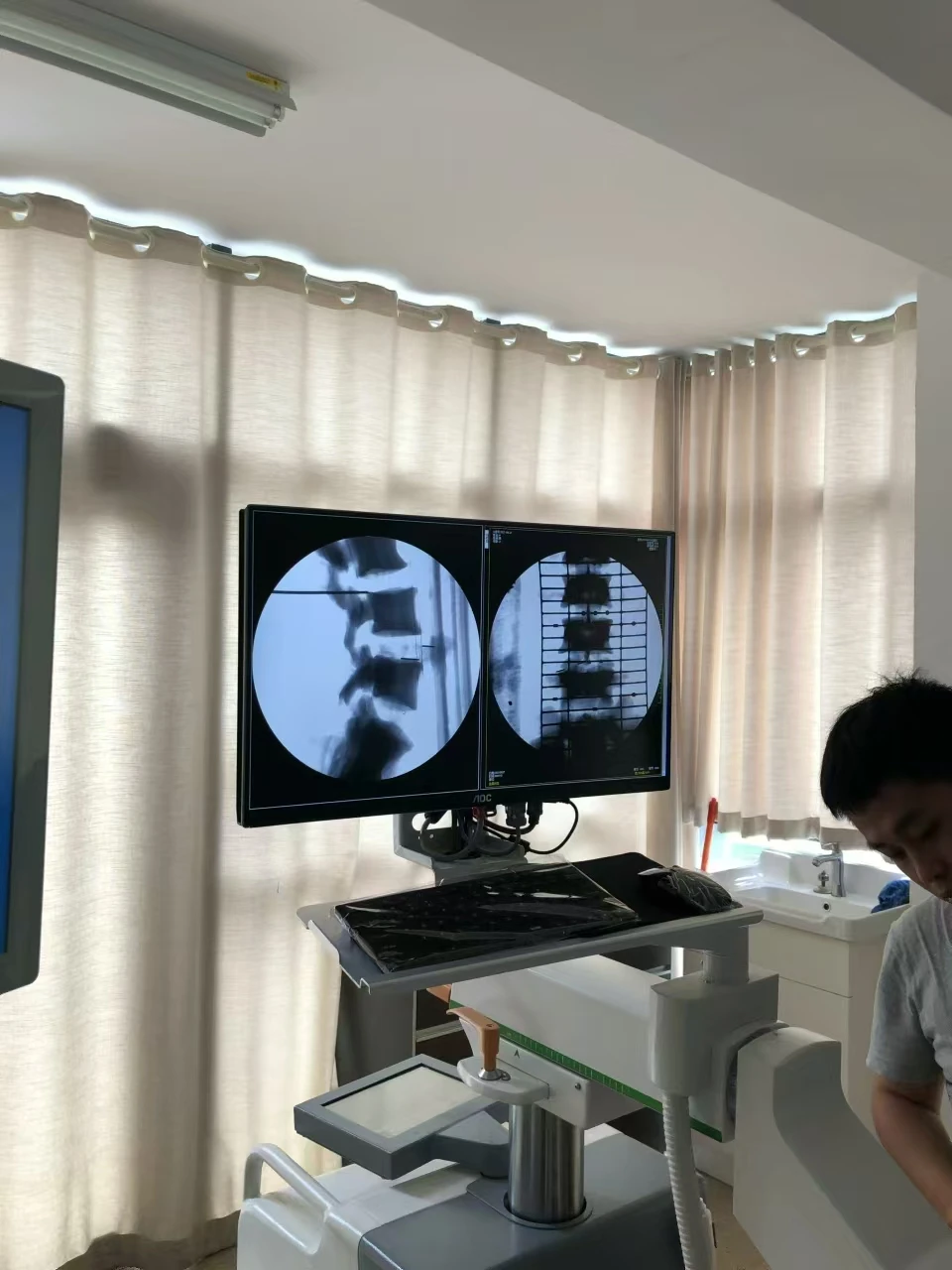

Image system	5 Degree recursive Noise Reduction Frame freezing Thousands of image data storage Image conversing and rotating Screen display with image comparison Support“one click”print,print the image report Equip with Dicom 3.0 network port(optional) Support Dicom 3.0standard data export function
Mechanical motion specifications	Vertical travel:0-400mm Horizontal travel:0~200mm Rotation about horizontal axis:±180°
C-arm dimension	Distance of focal spot to image generator(SID):1000mm Depth in arm2650mm Mobile stand:1800mm*800mm*1850mm Image system:750mm*530mm*1680mm
Standard configuration	High resolution CCD camera:1set x-ray generator:1set 9”image intensifier:1set image processor 24"LCD high definition display 1 set Mobile stand :1 set
