UCD5L Hospital Diagnosis Scanner Laptop Color Doppler 3D 4D Ultrasound Machine for Pregnancy

R 220,713.00 ZAR

~~R 294,284.00 ZAR~~ R 220,713.00 ZAR

Sale Sold out

Color White

Safety standard None

SPECIFICATIONS

After-sale Service: Online technical support

Application: Abdomen, Gynecology, Vascular, Obstetrics

Body mark: ≥6 kinds

Brand Name: Visionstar

Dynamic range: 20-280dB 20 level visual adjustable

Filtering: ≥5 kinds

Function: Hospital Medical Diagnose

Gain 0-100: step 1 visible adjustable

Gray scale: 0-7 level visible visible and adjustable

Instrument classification: Class II

Interface: USB port:2 ,Audio port:1 ,LAN port:2 ,HDMI port:1

Material: Metal

Model Number: UCD5L

Monitor: 15 inches, high definition LED

Place of Origin: Chongqing, China

Power Source: Electric

Pseudo color: 12, visible and adjustable

Quality Certification: None

Shelf Life: 1years

TGC: 8 segment adjustable

Type: ultrasound equipment

Warranty: 1 Year

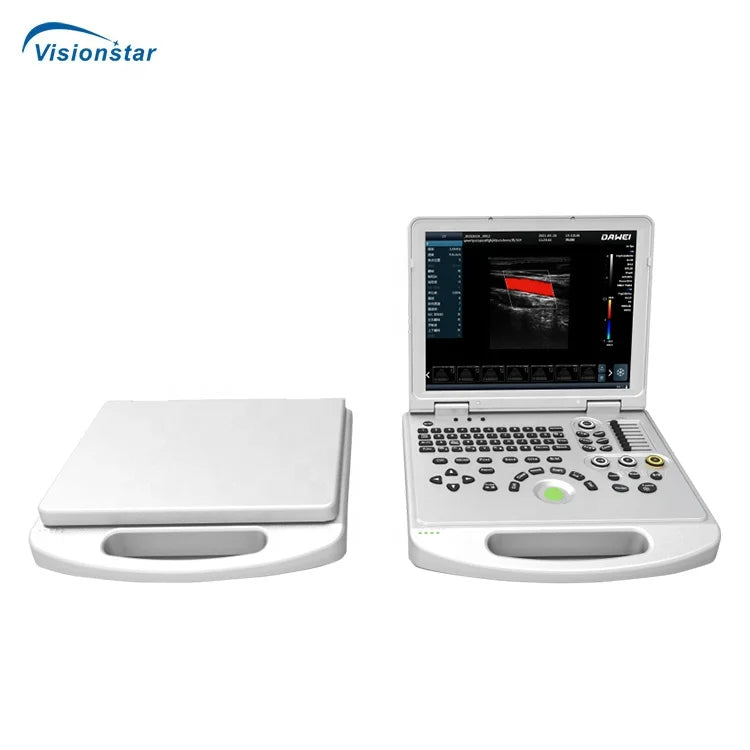

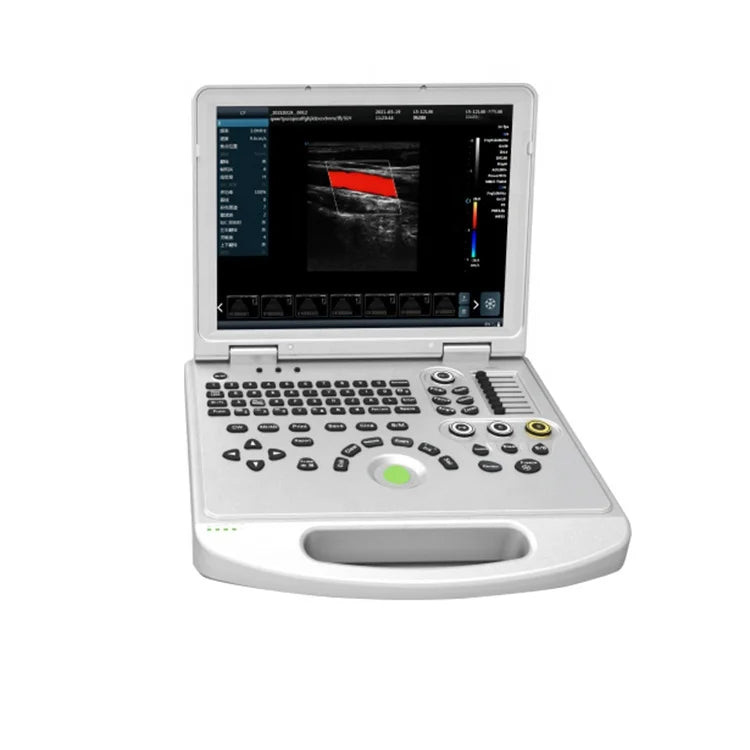

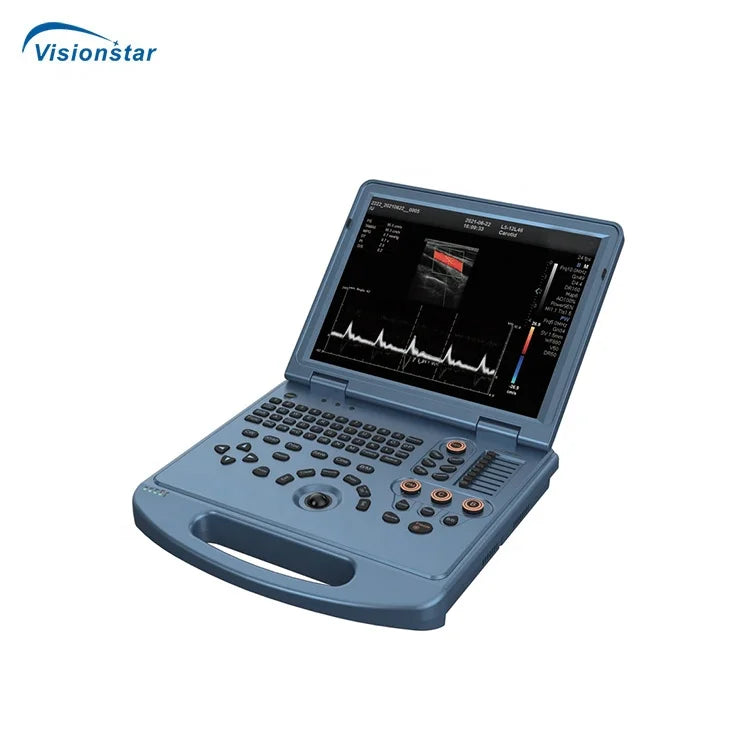

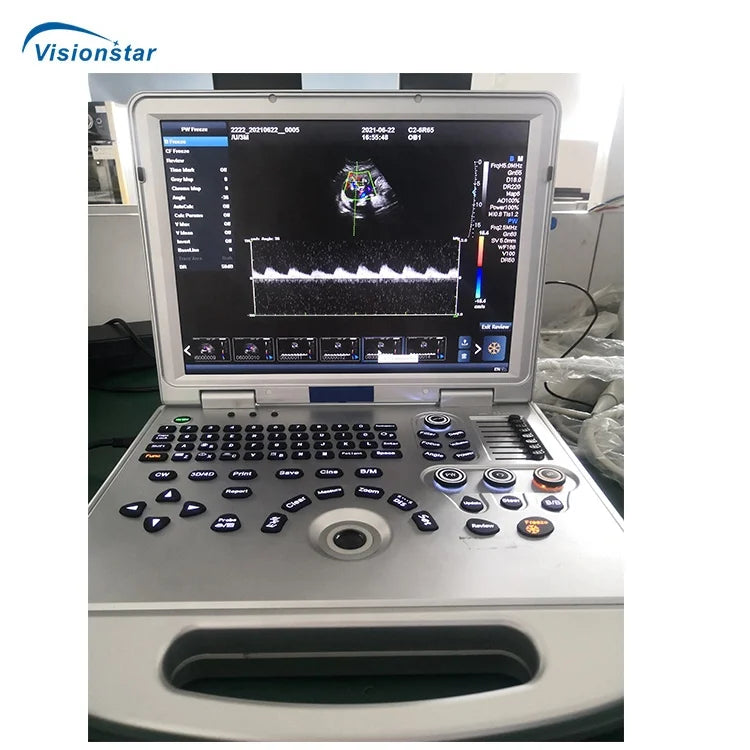

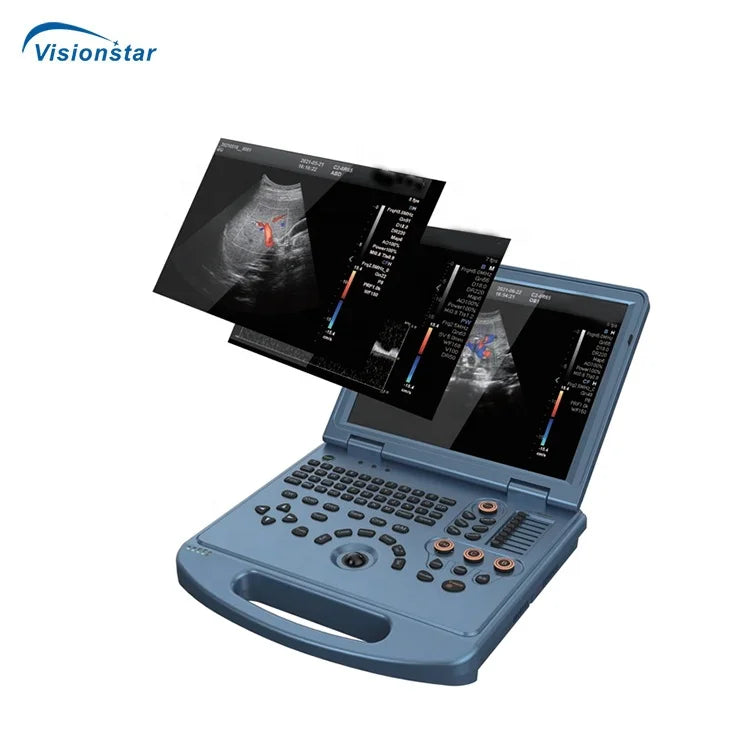

UCD5L Hospital Diagnosis Scanner Laptop Color Doppler 3D 4D Ultrasound Machine for Pregnancy

Features:

* Thin and light notebook design(56*39*57cm 12kg).
* Display: 15 inch LED medicinal monitor( 12, visible and adjustable)
* Spectrum envelope function: auto, manual model optional.
* Iworks system: quick to manage information.
* Best inspection conditions presetting: saving operating time.
* ADC information transfer module: keeping high signal Dyn range.
* Sub-array technology: more sensitive and smoother images.
* 128GB SSD, Large storage for video images.
* Built-in lithium battery, battery runtime≥2h.
* Monitor:15 inches, high definition LED.

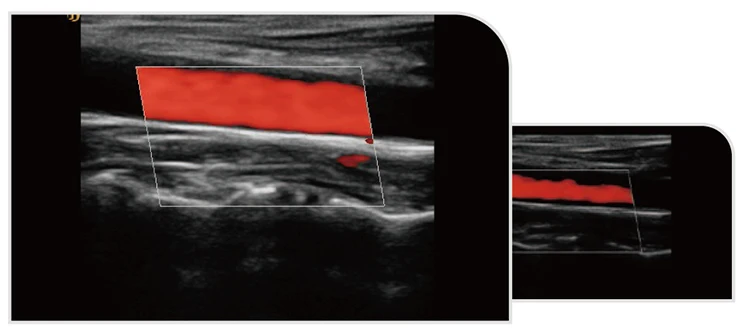

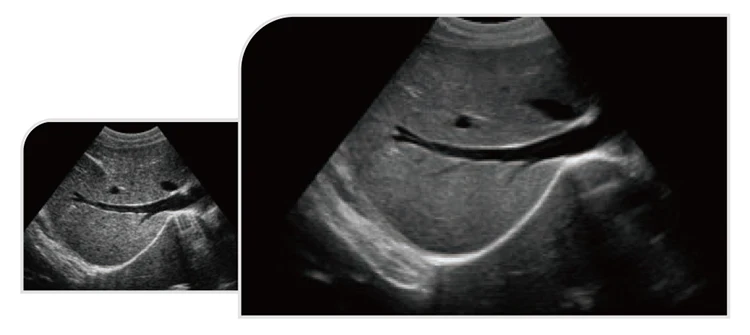

Trapezoidal lmaging
Trapezoid imaging is a kind of expanded imaging, which is transformedinto a trapezoid based on the original rectangle, and the left and right sidesare expanded to a certain extent, achieving a wider field of view.The princi-ple of ultrasound imaging is to scan the human body with ultrasonic'soundbeams, and obtain images of internal organs by receiving and processingthe reflected signals.

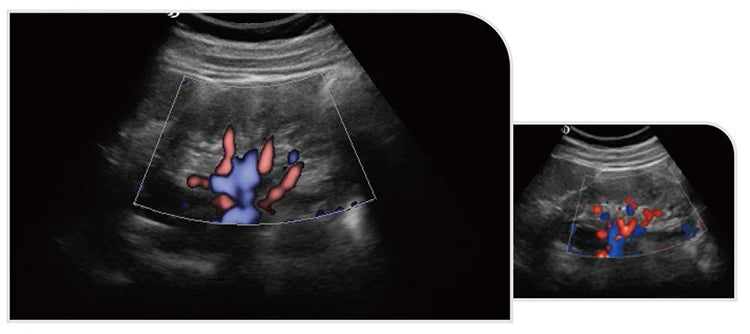

Directional Power Doppler lmaging (DPDI)
Directional Power Doppler employs a small sample volume with highresolution to produce images with two-color directional information andless 'blooming' of color for more realistic representation of defect size. ltcan make up for the lack of power Doppier that can not display thedirection of blood flow, and increase the direction information.

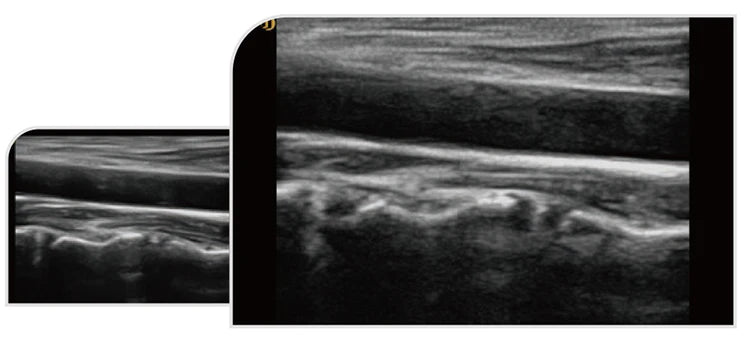

Tissue Harmonic lmaging(THI)
lt improves image clarity by improving tissue contrast resolution,andspatial resolution, and eliminating near-field artifacts.It is mainly used forthe diagnosis of cardiovascular and abdominal diseases. lt plays an import-ant role in evaluating the lesion area and boundary division of patientswith imaging difficulties.

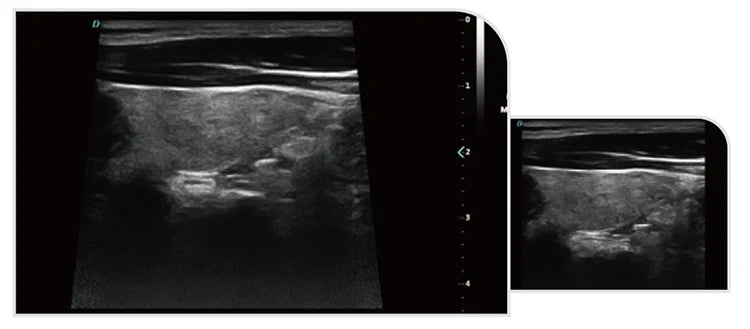

Micron lmaging
Micron imaging technology, real-time tracking of specific signals at theedges of different tissues, to achieve edge enhancement, and monitor eachpixel at the same time; optimize the internal signal of the organization andperfectly integrate the edge infomation and the internal pixel informationof the organization to restore the real and delicate, excellent level contrastTwo-dimensional image.

Clean filter
lt can filter and extract the effective information of the whole frequencyband and different depths,calculate the variation degree of the signalduring the propagation process,perform targeted correction and match-ing,effectively suppress and filter the noise signal,and obtain highrestoration imagings.

Tech Data

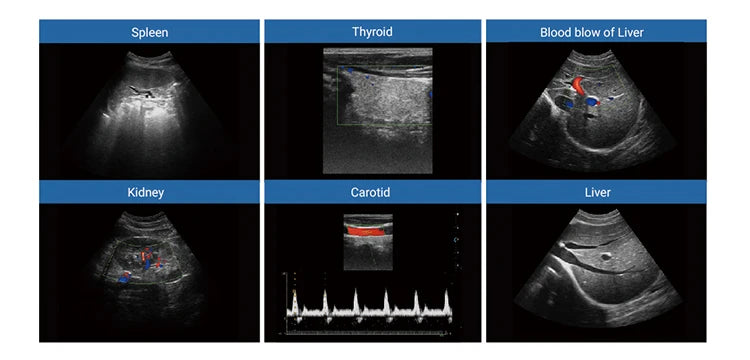

Application	Abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid, Urology, orthopedics, peripheral blood vessels, heart and so on.
Configuration	* Main Unit 1 PC * Probes : Convex probe(Optional), Linear probe(Optional), Micro-convex probe of R15(Optional), Phased array probe(Optional), Trans-vaginal probe(Optional) * Thermal video printer(Optional), Mobile trolley(Optional) * Warranty Period: 2 years
Summary of the main specifications	* Ultrasonic host operating system: Windows 8 operating system * Spectrum pulse Doppler * Direction energy Doppler * Real time three synchronization * Space composite imaging * Tissue harmonic imaging * 2B / 4B imaging mode * Languag: Chinese/English/Russian/Spanish/French * Monitor: 15 inches, high definition LED * Display 0-180 degree angle adjustable * Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted. * The system has the function of on-the-spot upgrade * Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation. * Signal probe interface * Trapezoidal imaging Function
Optional Probes	Convex probe: 2.0MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz/H4.0MHz/H5.0MHz, (depth 30-255mm) Linear probe:6.0MHz/7.5MHz/8.5MHz/10.0MHz/12.0MHz/H10.0MHz, (depth 20-128mm) Transvaginal probe:4.5MHz/5.0MHz/6.0MHz/6.5MHz/7.0MHz/9.0MHz/H8.0MHz, (depth 30-156mm) Phased arrayprobe:2.0MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz/H3.0MHz/H4.0MHz, (depth 100-244mm) Micro convex probe (R15): 4.0MHz/6.0MHz/7.0MHz/8.0MHz/H8.0Mhz, (depth 30-111mm) Rectal probe:4.0MHz/6.5MHz/9.0MHz/H8.0Mhz,(depth 20-111MM) The above probes have harmonic frequencies Each probe has a selection of specialist and organ modes for quick access for diagnostic
Two-dimensional imaging mode	Gain: 0-100, step 1 visible adjustable TGC: 8 segment adjustable * Dynamic range: 20-280dB 20 level visual adjustable * Pseudo color: 12, visible and adjustable * Sound power: 5% to 100%, step 5%, visible and adjustable * Body mark ≥6 kinds * Maximum focus number:≥6 ,adjustable * Gray scale: 0-7 level visible visible and adjustable * Filtering:≥5 kinds * Scanning range, 50%-100% * Frame correlation, 0-4 level, visible and adjustable * The screen shows 14 forms of real time display of power, probe frequency, dynamic range, pseudo color, grayscale and so on.
Color imaging mode	* Colour deflection: workable * Color frame correlation 12 levels, visible and adjustable * Color map: 7, visible and adjustable * Color reversal: adjustable * B/C split screen synchronous display function: workable * Color baseline: 7, visible and adjustable * Color line density: adjustable
Spectrum Doppler mode	* Sampling volume angle correction: -80 degree to 80 degree adjustable * Sampling volume: 0.5mm-20mm visible and adjustable * Frequency: ≥5, visible and adjustable * Baseline: 8 steps adjustable * Smooth: 8 steps adjustable * Display layout:≥4 kinds, visible and adjustable * Pseudo color: ≥ 7, visible and adjustable * Speed scale: 3-2288cm/s * Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and so on. System automatic analysis and display: PSV, EDV, RI, PI, S/D, ACC, HR and other kinds of data
Measurement and analysis function	* General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index / pulsatility index, etc. * Obstetric measurement:weight measurement formula ≥13 options * The color and line type of the measuring line adjustable (including activating the color and completing the color). * The measurement results show that the location and font size adjustable * Professional software package:abdomen, obstetrics and Gynecology, small organs, carotid, Urology, orthopedics, peripheral blood vessels, heart.
Graphic and Text Management System	Image storage format:BMP DICOM JPEG DEFAUIT * Host built in ≥512G solid state hard disk to start fast and stable * Movie playback: ≥ 600 frames * Internal patient file information management system: record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on * The type of report ≥ 18 * One key fast report graphic and text management

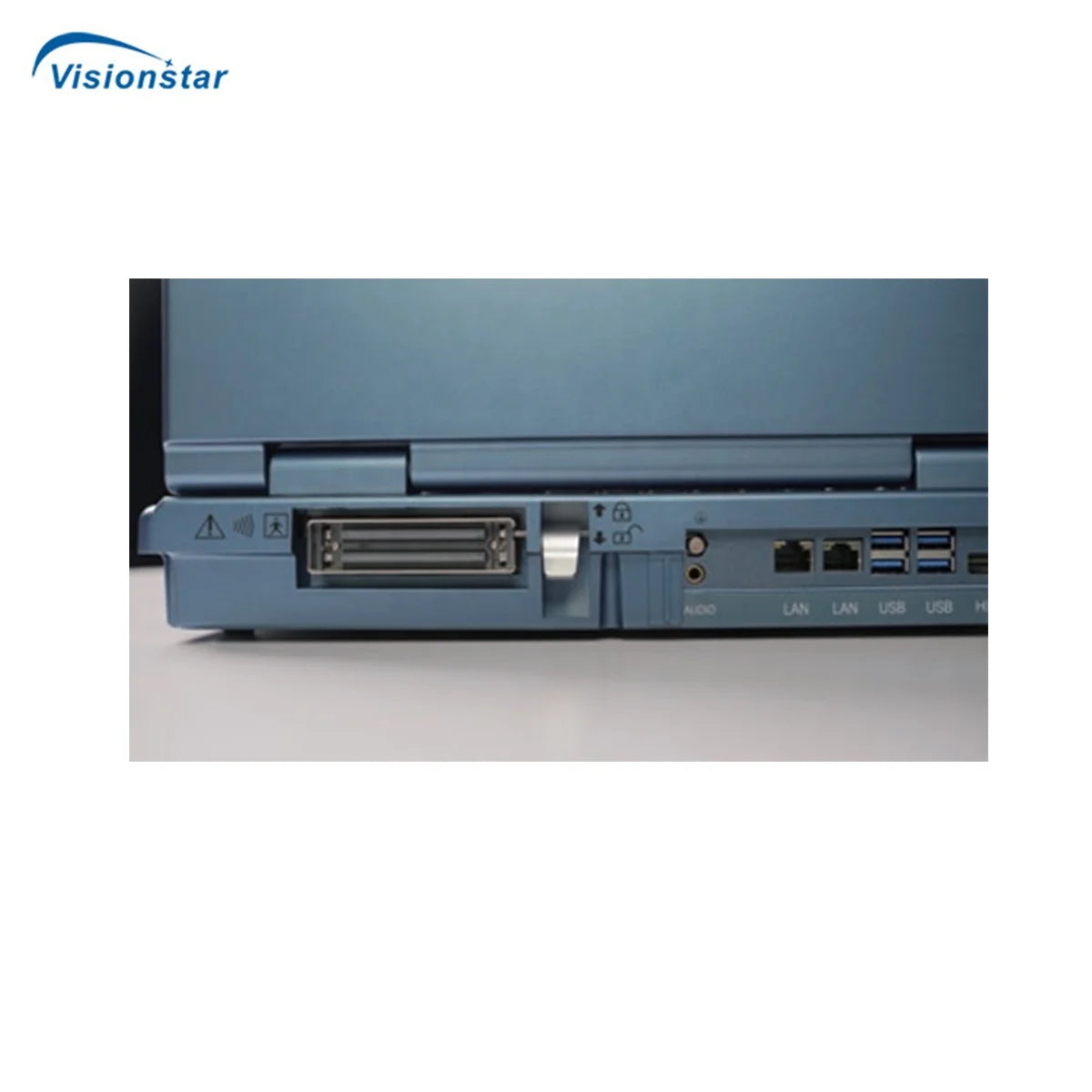

Interface	USB3.0 ports 4, USB2.0 ports 2 , HDMI ports 1, LAN ports 1 , AUDIO ports 1, VIDEO ports 1
