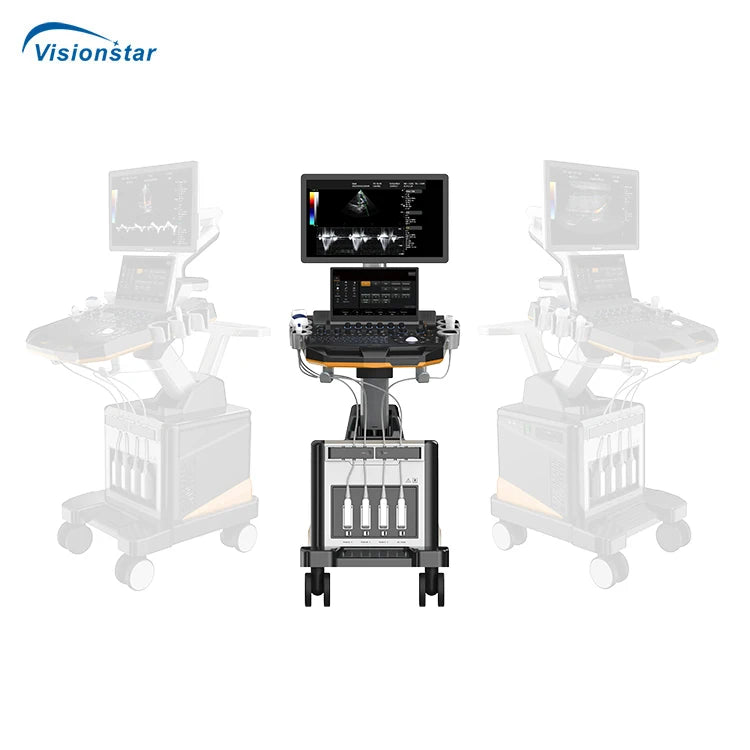

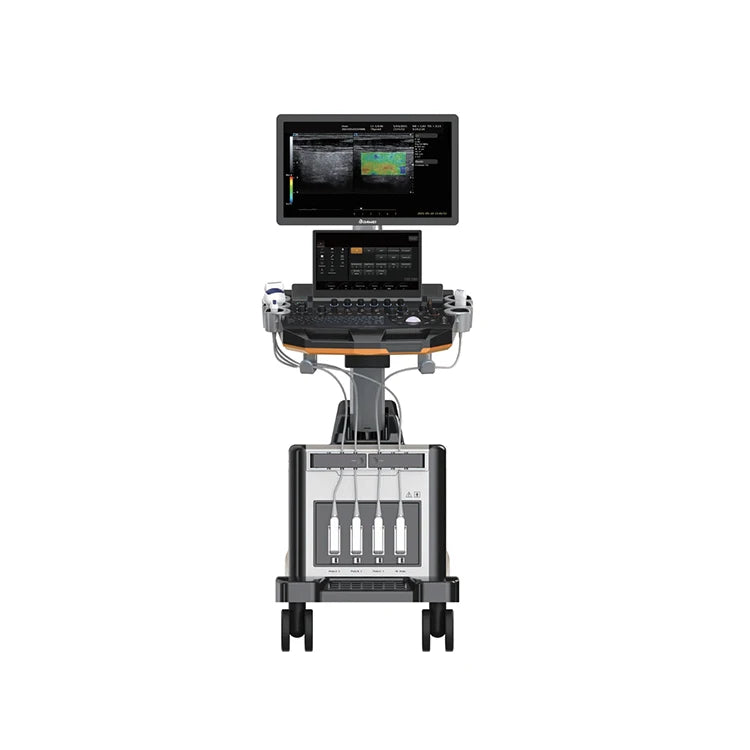

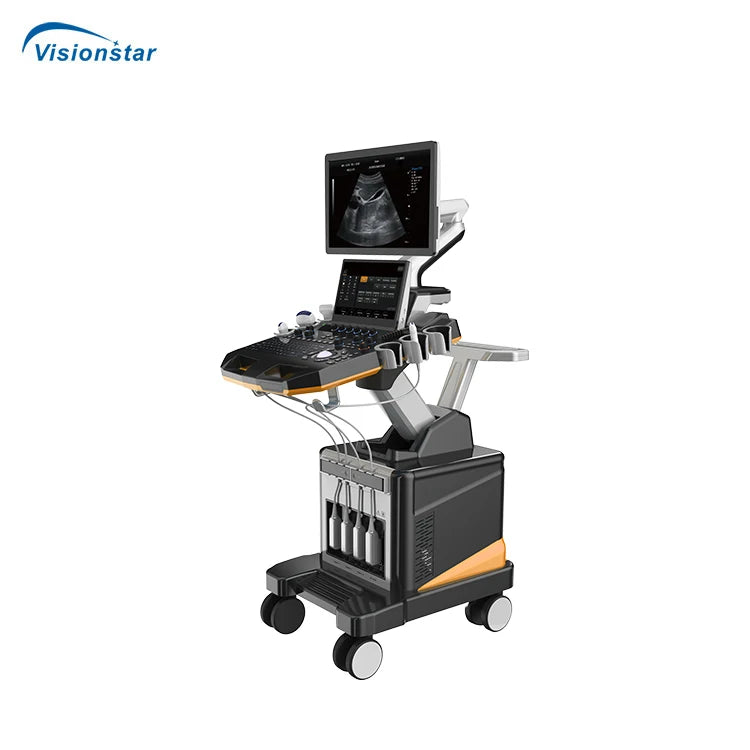

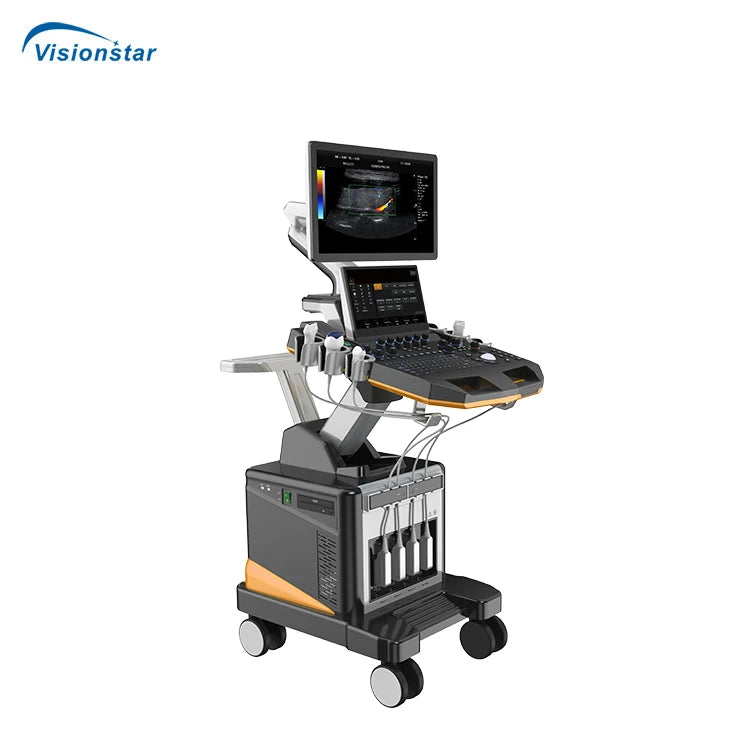

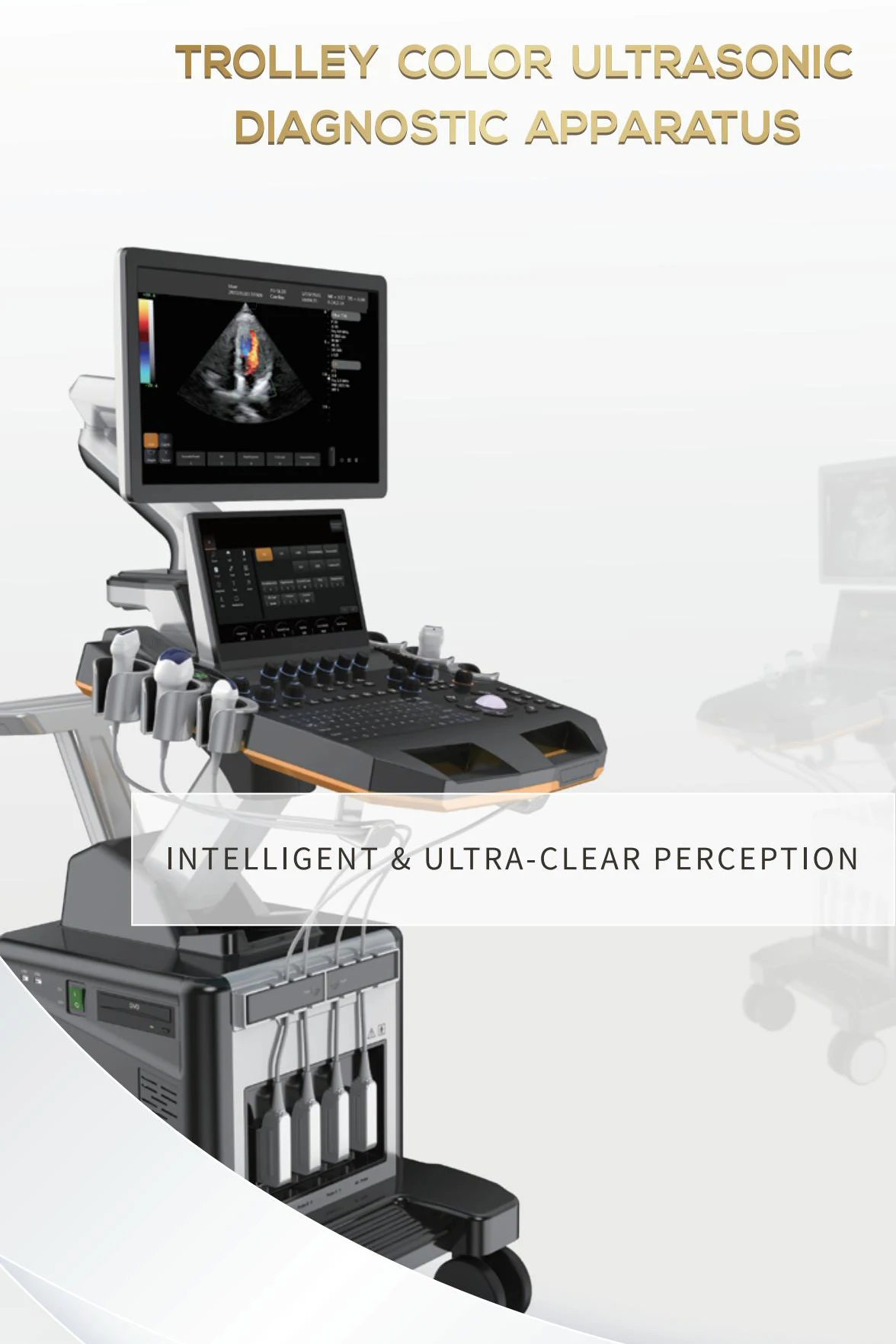

UCD60T Professional Cardiac Imaging Color Doppler 5D Trolley Ultrasound Machine for Hospital

R 645,990.00 ZAR

~~R 861,320.00 ZAR~~ R 645,990.00 ZAR

Sale Sold out

Color Black

Safety standard None

SPECIFICATIONS

After-sale Service: Free spare parts

Application: Cardiology,Abdomen, obstetrics, gynecology, heart

Brand Name: Visionstar

Feature: Full Digital

Instrument Classification: Class II

Instrument classification: Class II

Management Certifications: ISO

Material: Metal,Metal

Model Number: UCD60T

Place of Origin: Chongqing, China

Power Source: Electric,Electrical

Product Certifications: CE

Product name: Trolley Color Doppler Ultrasound Machine

Properties: Diagnosis

Quality Certification: None

Shelf Life: 1years

Type: color doppler ultrasound,Trolley Modle

Warranty: 1 Year

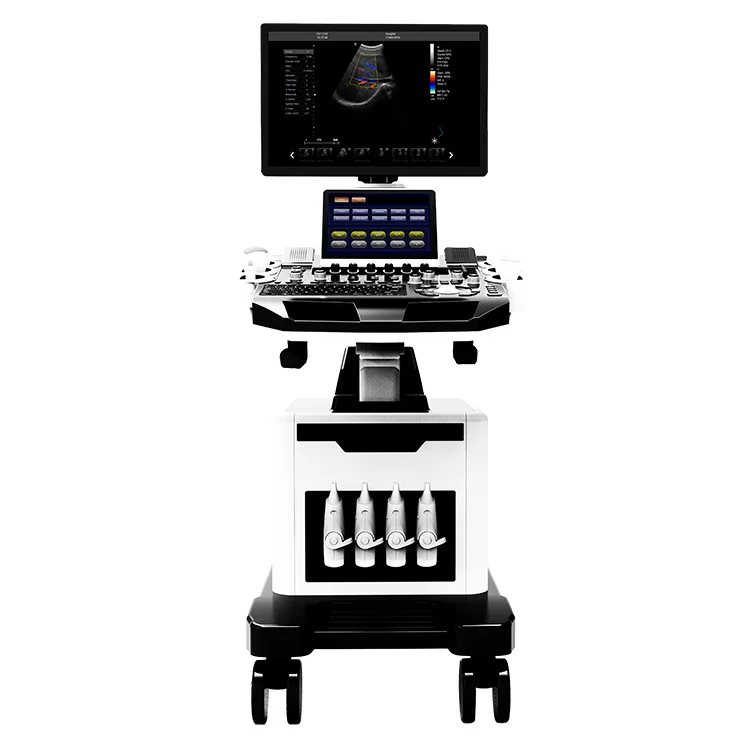

UCD60T Professional Cardiac Imaging Color Doppler 5D Trolley Ultrasound Machine for Hospital

Features:

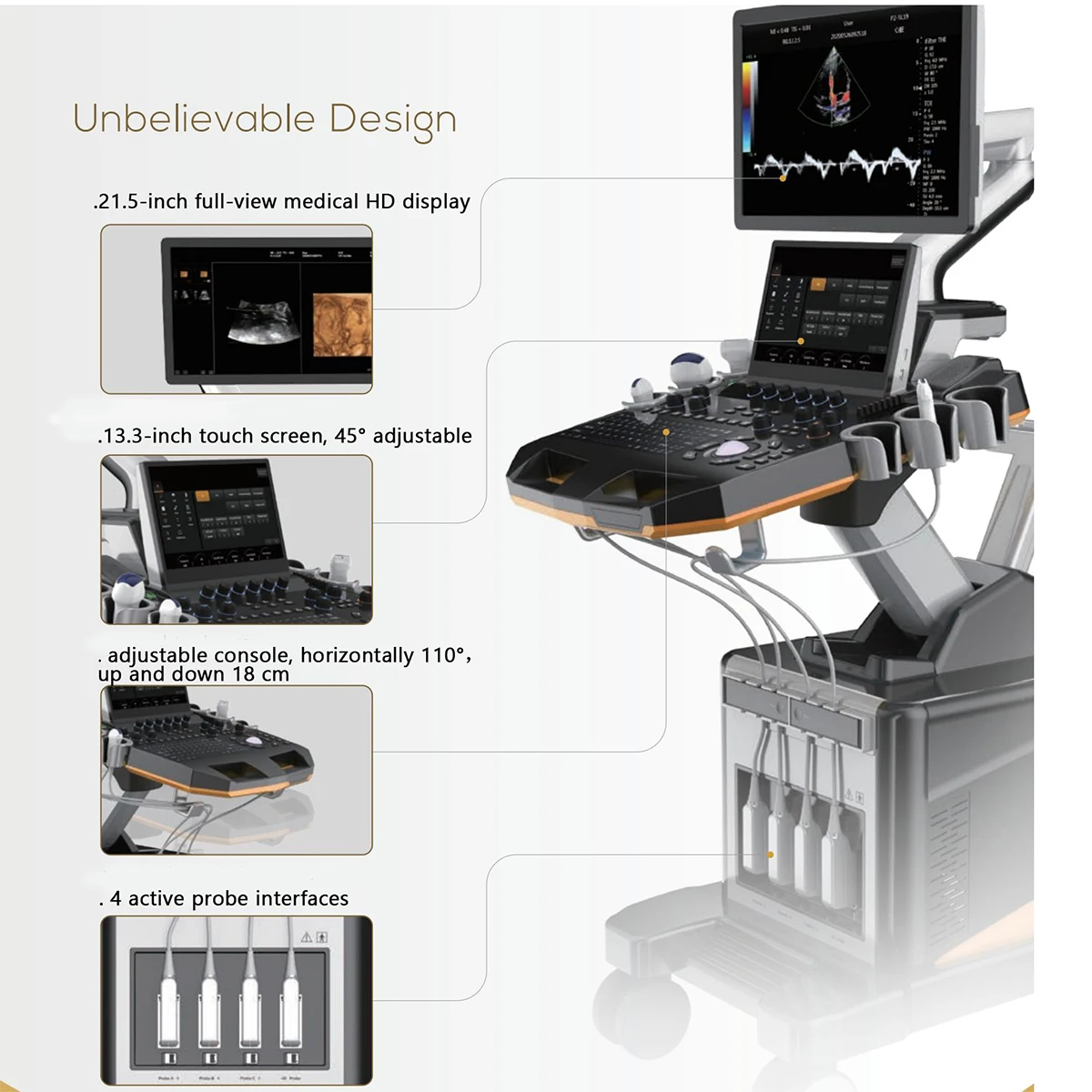

* 128 elements array, 21.5 inch LED medicinal monitor + 13.3 inch touch screen.

* Lifting and rotating platform with adjustable height and movable rotation function.

* 6 probe connectors (Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe, 4D Volume probe)

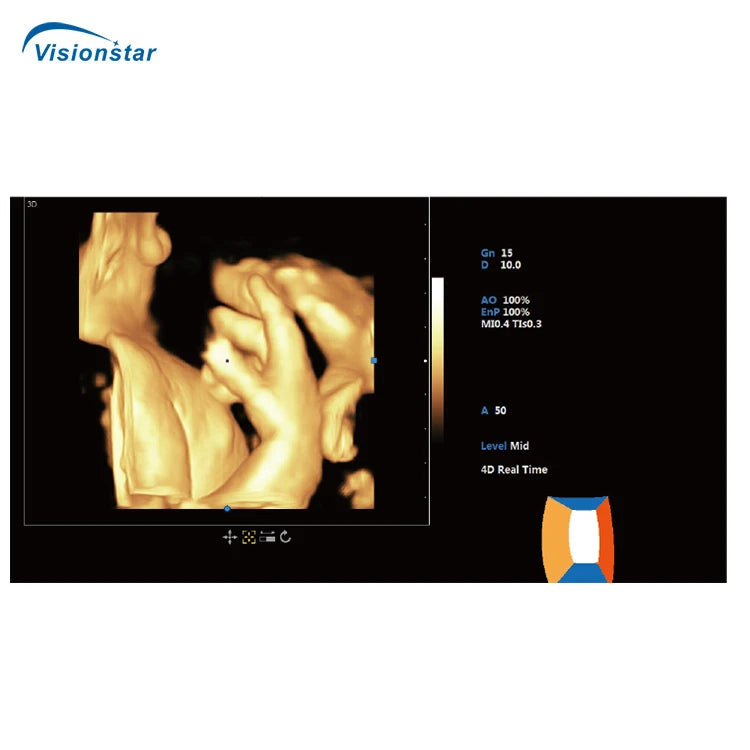

* PDI, PW, CW, 2D, 3D, 4D , TDI, Auto IMT/NT, Elastography, Puncture enhancement, Panoramic, Trapezoid Imaging, Color M, Anatomical M mode

*Spectrum Envelope Function: Real-time, manual, etc. optional modes

*Auto IMT measurement: optimizing the angle of measurement automatically

*Puncture Enhancement function: iNeedle puncture enhancements with built-in ultrasound teaching software

*ST-U Technology Platform: CPU+GPU dual-core processing architecture; Clearer imaging, faster response

*New technology probes, ADC+beam reconstruction: 10x faster response time, performance increased by 60%

* Rich measurement package

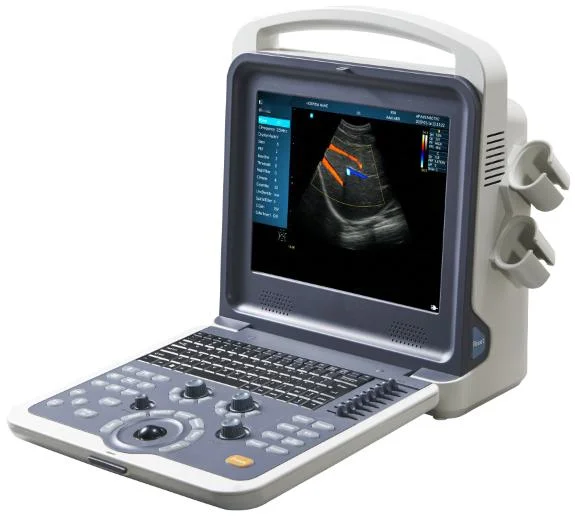

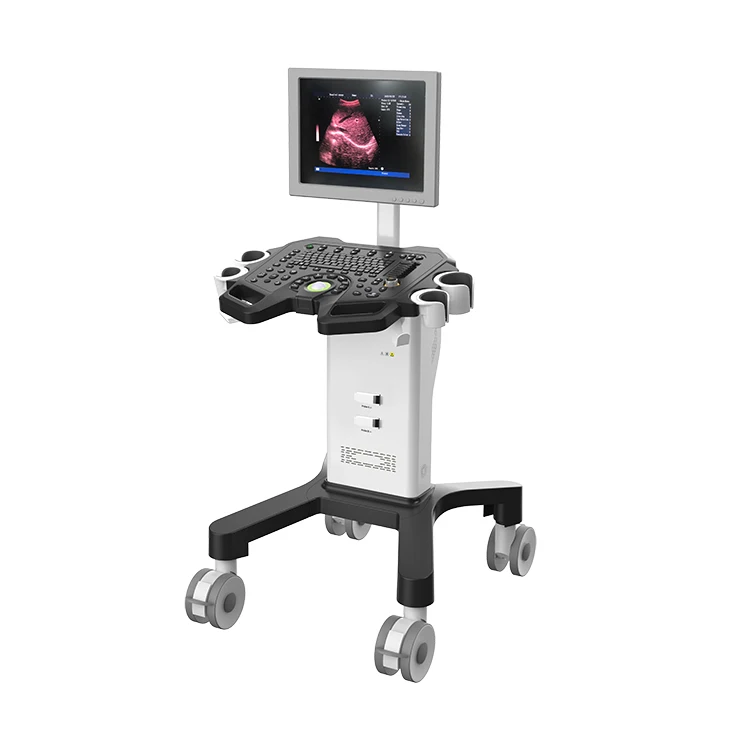

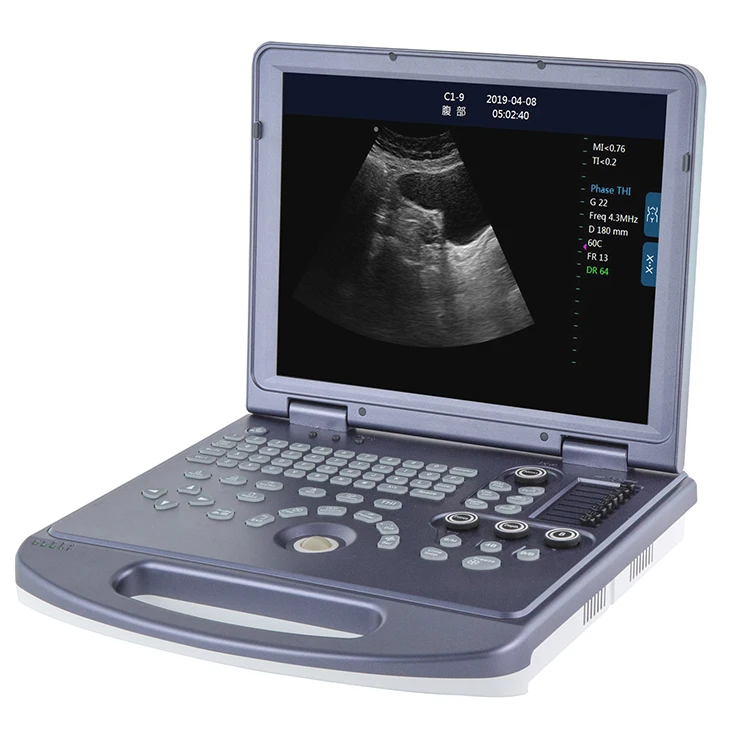

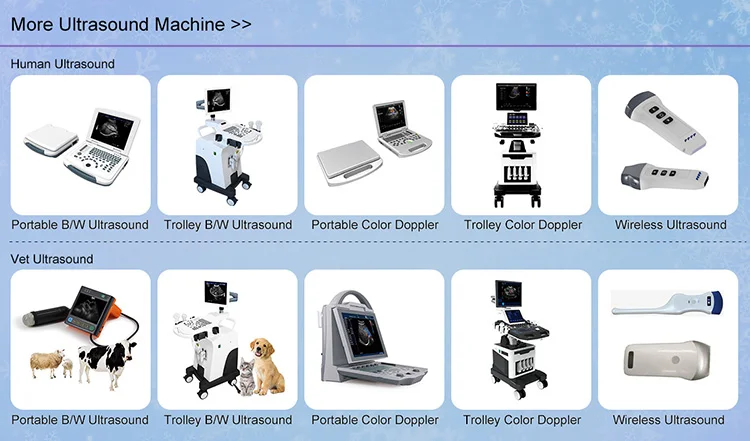

UBW5600 Portable B/W Ultrasound	UBW360 Laptop B/W Ultrasound	UBW350 Trolley B/W Ultrasound	UCD01 Portable Color Doppler	UCD5L Laptop Color Doppler

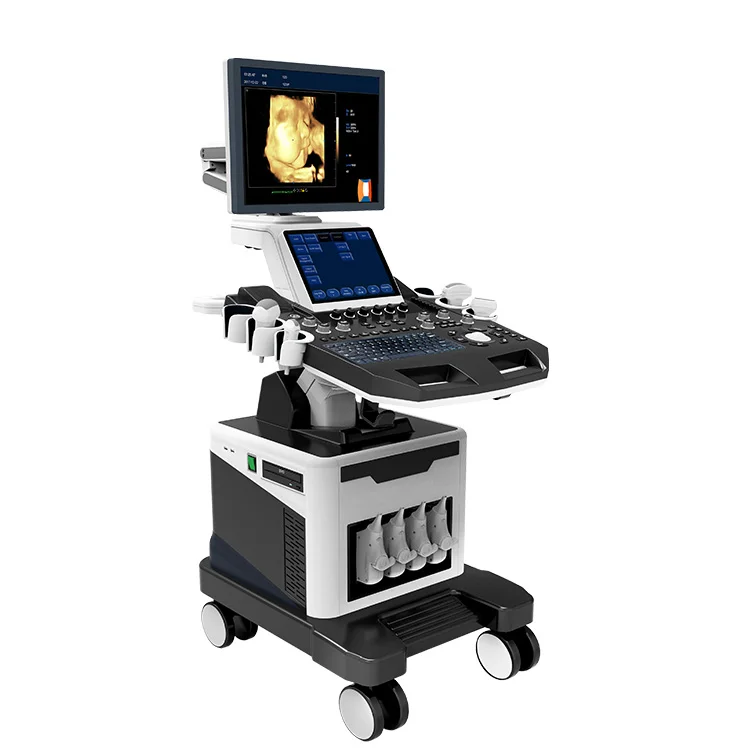

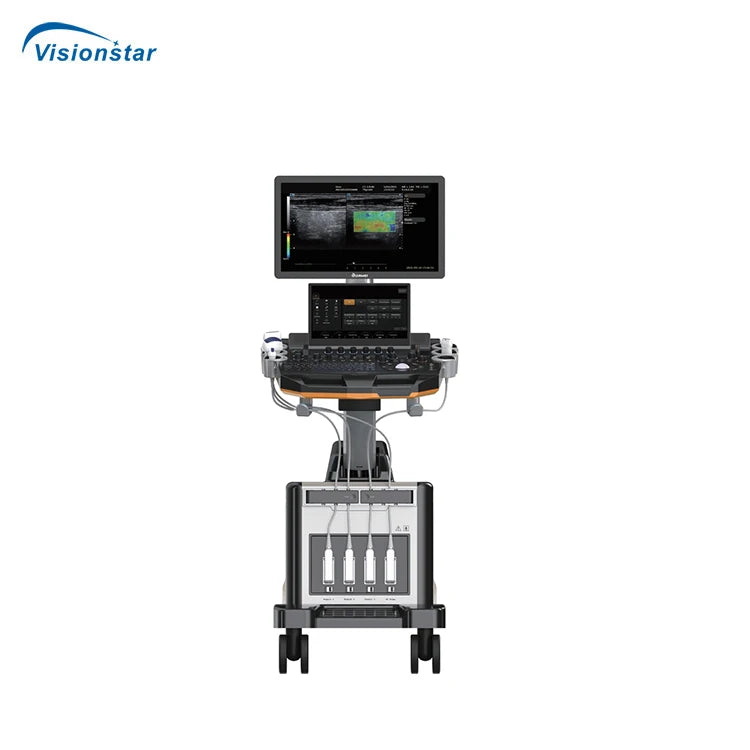

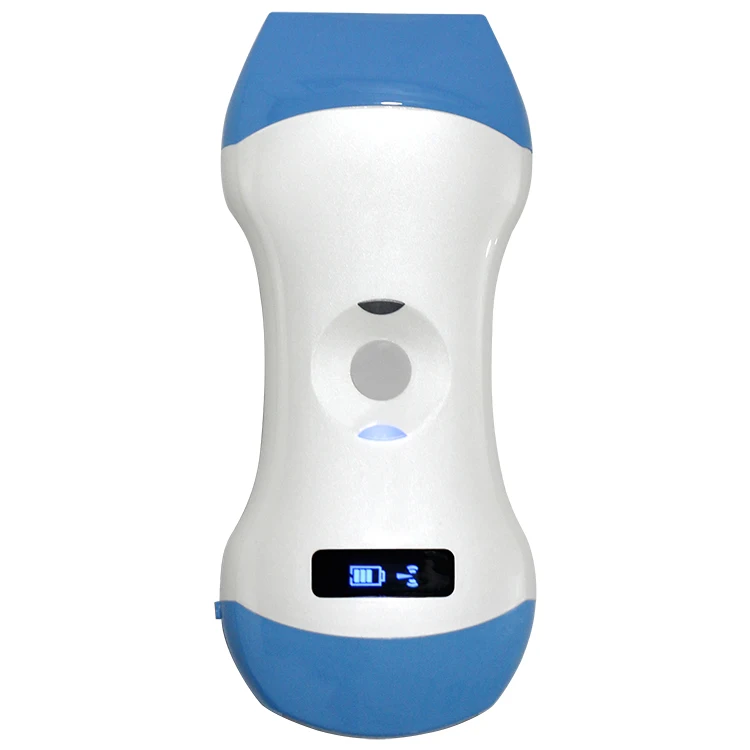

UCD50L Laptop 4D Color Doppler	UCD5T Trolley Color Doppler	UCD60T Trolley 4D Color Doppler	UCD8T High-end Cardiac Color Doppler	WCDC4PL Wireless Ultrasound Probe

Tech Data

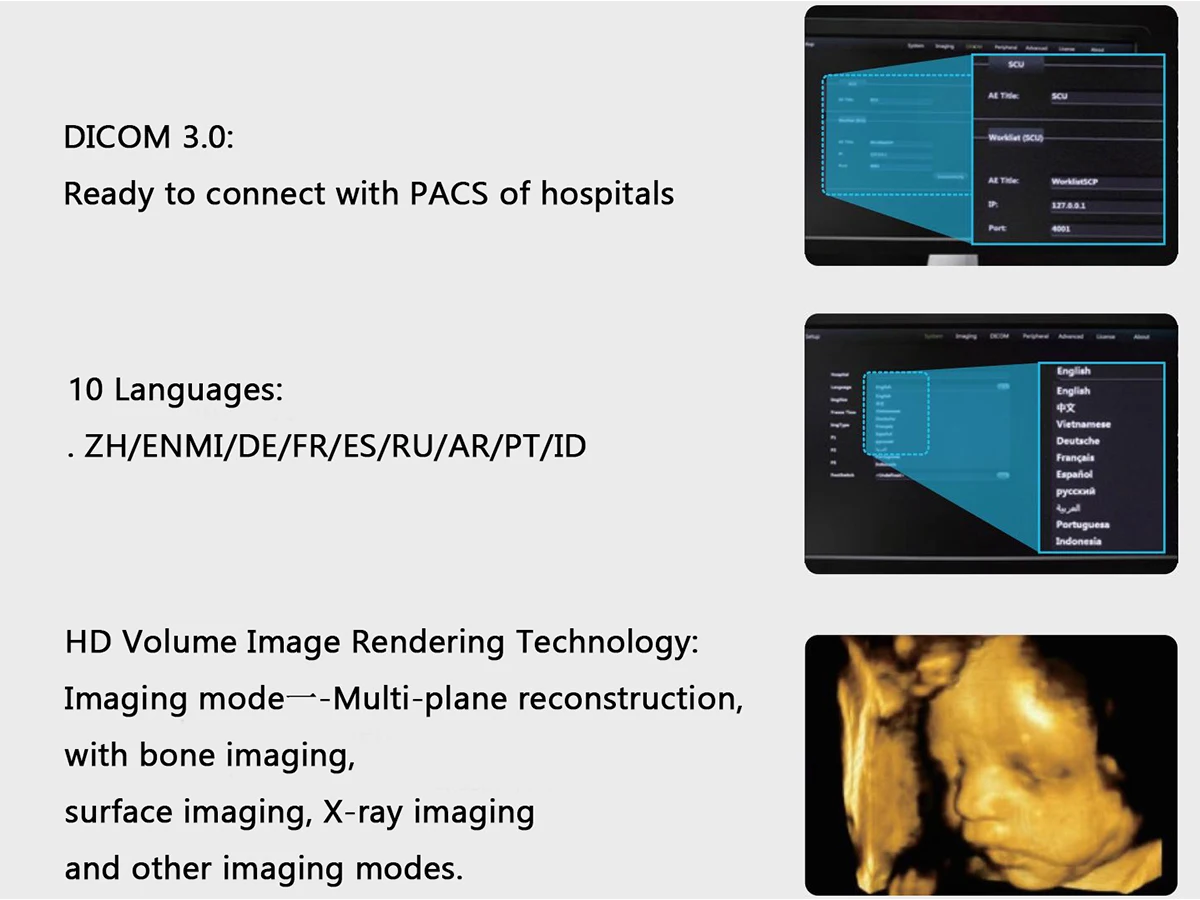

Summary of main specifications and system of cart type color Doppler ultrasound	Trolley type all digital color Doppler ultrasonic mainframe Ultrasonic host operating system: Windows operating system Applications:Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal Probes:Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volume probe Applications and report:Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc. Free hand 3D Real time 3D imaging(3D/4D) DICOM3.0 Monitor:≥21.5 inch,high definition ultrasonic display ≥13.3 inch touch screen Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted. The system has the function of on-the-spot upgrade *Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.

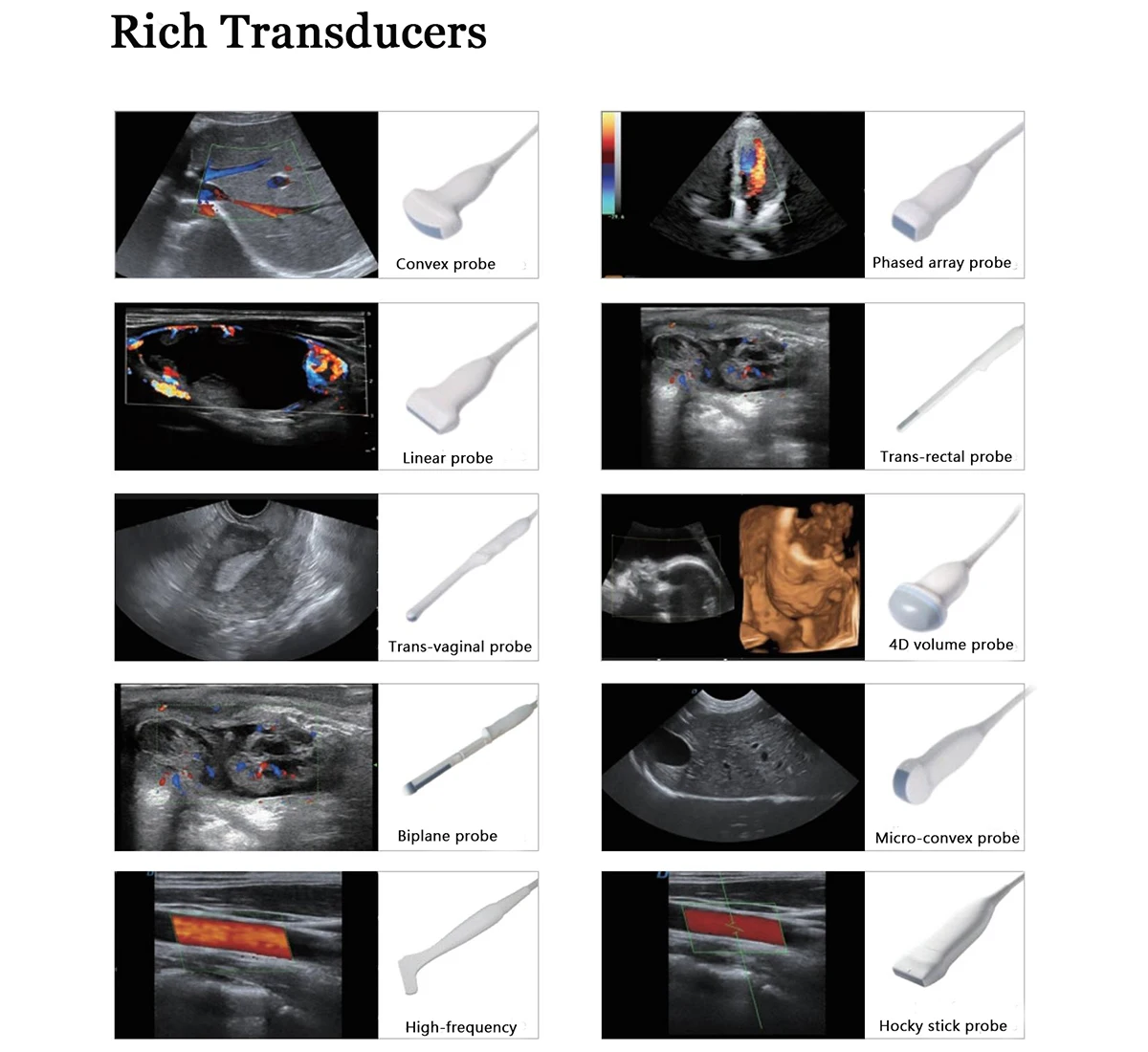

Probes	* Convex probe (Harmonic Frequency:4.0MHz/4.6MHz/5.0MHz) * Linear probe (Harmonic Frequency:8.0MHz/9.2MHz/10.0MHz) * Trans-vaginal probe (Harmonic Frequency:6.0MHz/7.0MHz/8.0MHz) * Micro-convex probe (Harmonic Frequency:6.0MHz/7.0MHz/8.0MHz) * Cardiac probe (Harmonic Frequency:3.4MHz/3.8MHz/4.2MHz) * 4D Volume probe (Harmonic Frequency:4.0MHz/5.0MHz/6.0MHz)
2D imaging mode	2D imaging mode Gain:0-100,Step 2 adjustable TGC:8 segment adjustable Maximum focus point:≥7, which can be moved throughout the whole process. Speckle reduction:0-5,5 level Space Synthesis:0-2,2 level(Liner probe: 3 level, cardiac probe:0) Dynamic:30-180,35 level,step 5 adjustable Line density:low,middle,high,3 level Frame correlation:0-4,4 level Noise reduction:0-5,5 level Edge Enhancement:0-5,5 level Sound power:2-10, 9 level Grey scale:0-67, 67 level False color:0-67,67 level Image style:Soft-Comparison,2 level The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11 parameters can be adjusted
Measurement and analysis function	General measurement: Distance, area, ellipse, cross line, angle, distance ratio, volume, Volume (ellipse), area ratio, diameter, joint angle Cardiac:Automatic spectrum envelope,LV,Main Pulmonary artery diameter,RVEDd,RVEDs,LVM,LAV,HR,MVF,AO,AR,LVOT,TVF,Pulmonic valve,Pulmonary vein,RV,Doppler fetal heart sound,LVET,LVM,LVMI,AV Vascular: carotid intima (IMT), length stenosis ratio, area stenosis ratio, IMT (back wall), IMT (front wall) OB:Fetalroutine,AFI,TW,GS,CRl,OFD,HL,ulna,NT,Fibula,Nbonel,Radial,Tibia GYN:uterus,cervix,corpus uteri/cervix uterus,left ovarian vein,right ovarian vein,dominant follicle,intima thickness Urology: prostate,residual urine,left kidney,right kidney,left suprarenal vein,right suprarenal,left testis,right testis,left seminal vesicle,right seminal vesicle Abdomen:liver,CHD,partal vein diameter,cholecyst,CBD,pancreas,spleen,Internal diameter of abdominal aorta,kidney Small parts:Thyroid *Software package:Measurement package,Software package,Medical records management software package
Graphic and text management system	Host build in 2 hard disk(SSD 120+1T),Start fast and stable Movie playback:≥1200 frames Internal file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on. Type of report is 16 *One key fast report graphic and text management
Interface	USB interface: 4 HDMI interface: 1 RJ-45 interface:1 Grounding wire interface:1 Video interface:1 S-Video interface:1 DVI interface:1 DVD RW:1
Configuration	Trolley type full digital color Doppler ultrasound diagnostic system Probe: convex array probe (standard), linear probe (optional), Trans-vaginal probe (optional), cardiac probe (optional), 4D volume probe (optional) *≥13 quick adjusting knobs
Technology, after-sales service and other requirements	After acceptance, the warranty is free for two years(Provide manufacturer warranty certificate) Manufacturer has ISO13485 certification and EU CE certification.
